1716030000 Weidmüller LM 5.08/03/90 3.5SN BK BX PCB terminal block with 3 positions at 5.08mm pitch. Rated 15A at 300V, through hole solder connection, black.
Mfr Part #:

1716030000

Available from 1 distributors
Mfr Name: Weidmüller
Weidmüller
Weidmüller LM 5.08/03/90 3.5SN BK BX PCB terminal block with 3 positions at 5.08mm pitch. Rated 15A at 300V, through hole solder connection, black.
✓ Total Stock: 1 pcs

1716030000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request 1024 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1716030000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Current
Features
Insulation Material
Insulation Resistance
Lead Spacing
Lead Style
Mating Orientation
Mounting Type
Number of Levels
Operating Temperature Range
Pitch
Positions Per Level
Storage Temperature
Tape & Reel
Termination Style
Voltage
Wire Gauge
Wire Termination
View Similar Products (0)

1716030000 Description

Short technical summary and product information.

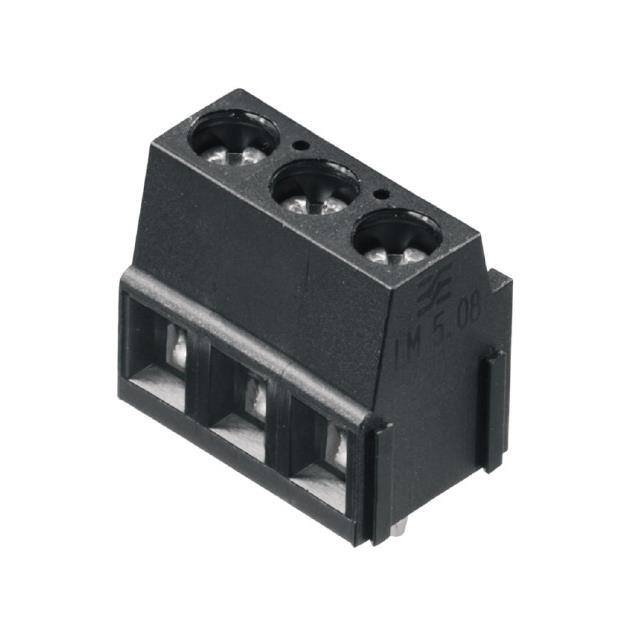

The Weidmüller 1716030000 is a PCB terminal block from the OMNIMATE Signal - series LM family. It features 3 positions with a 5.08mm pitch and a 90° conductor outlet direction. The clamping yoke connection accepts wires from 14 to 24 AWG (0.2 to 2.5 mm²) and is rated for 15A at 300V (UL) or 17.5A at 630V (IEC).



This through-hole component has a solder pin length of 3.5mm and is constructed with a black Wemid (PA) insulation housing rated UL 94 V-0. The contact material is tinned copper alloy. Side interlocking allows multiple units to be ganged together for additional poles.



Designed for industrial control and power distribution applications, this terminal block provides reliable screw-clamp wire termination. The operating temperature range is -50°C to 120°C. Supplied in boxes of 500 pieces.

1716030000 Quick Information

Product Type: PCB Terminal Block
Series: LM
Canonical Name: Weidmüller LM 5.08/03/90 3.5SN BK BX PCB Terminal Block
Subcategory: Wire to Board

1716030000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1716030000 Features

  • 3 positions at 5.08mm pitch.
  • Rated 15A at 300V (UL).
  • Clamping yoke wire termination.
  • Through hole solder mounting.
  • UL 94 V-0 flammability rated.

1716030000 Applications

  • Industrial control panel wiring.
  • Power distribution on PCBs.
  • Building automation systems.
  • Motor and drive connections.

1716030000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of this terminal block?

5.08mm

How many positions does it have?

3 positions

What is the current rating?

15 A (UL)

What is the voltage rating?

300 V (UL)

What mounting type does it use?

Through hole

What wire gauge is supported?

14-24 AWG

What is the operating temperature range?

-50°C to 120°C
