| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Clamping Range (IEC) | |
| Color | |
| Contact Material | |
| Contact Plating | |
| Current | |
| Current Rating | |
| Features | |
| Flammability Rating | |
| Halogen Free | |
| Industrial Grade | |
| Insulating Material | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Operating Temperature Range | |
| Packaging Type | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Solder Pin Length | |
| Standard Package Qty | |
| Storage Temperature | |
| Storage Temperature Range | |
| Stripping Length | |
| Termination Style | |
| Tightening Torque | |
| Voltage | |
| Voltage Rating | |
| Volume Resistance | |
| Weight | |
| Wire Gauge | |
| Wire Termination |

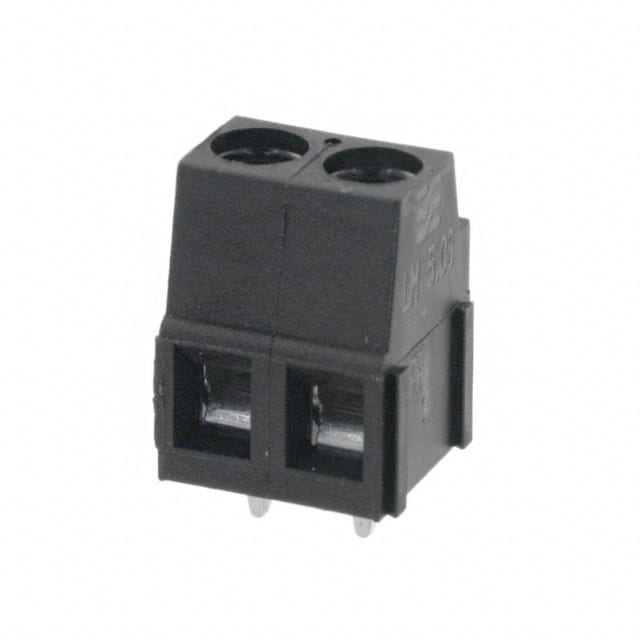

The Weidmüller 1716020000 (LM 5.08/02/90 3.5SN BK BX) is a 2-position PCB terminal block from the OMNIMATE Signal series. It is designed for wire to board connections with a 5.08mm pitch and features a screw clamping yoke connection for secure wire termination.
Electrical ratings include 15A current and 300V voltage per UL, with a wire range of 14-24 AWG. The contact material is Cu-Leg with tinned plating, and the insulating material is Wemid (PA) with a V-0 flammability rating. The terminal block operates over a temperature range of -50°C to 120°C.
Mechanical specifications include through-hole mounting with solder pin length of 3.5mm, horizontal mating orientation, and side interlocking for multi-position assembly. The clamping range is 0.2-2.5 mm² (IEC) and tightening torque is 0.4-0.5 Nm.
Supplied in box packaging with a standard quantity of 500 pieces. The product is RoHS compliant (low confidence) and REACH unaffected. A matching distributor part number is 281-1435-ND.
2 positions.
5.08 mm (0.200 inches).
15 A (UL) and 17.5 A (IEC).
300 V (UL) and 630 V (IEC).
Through hole (THT) with solder pins.
14-24 AWG (UL) or 0.2-2.5 mm² (IEC).
-50°C to 120°C.
