| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Current | |
| Features | |
| Lead Spacing | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Pitch | |
| Positions Per Level | |
| Tape & Reel | |
| Termination Style | |
| Voltage | |
| Wire Gauge | |
| Wire Termination |

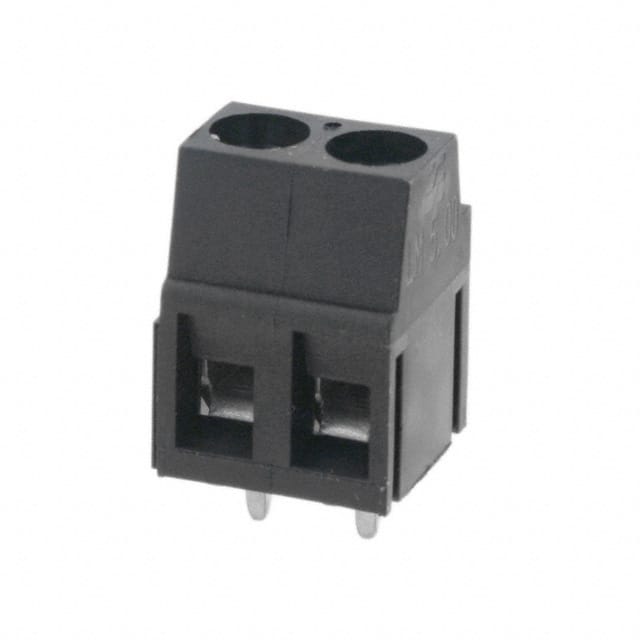

This Weidmüller 1715250000 is a wire to board terminal block designed for 2 positions with a 5.00mm pitch. It provides a side entry mating orientation, meaning wires enter horizontally relative to the PCB. The block uses screw clamp termination with clamping yoke and tension sleeve for reliable wire retention.
Electrically, it is rated for 20A continuous current at 300V, suitable for moderate power applications. It accepts wire gauges from 14 AWG to 24 AWG.
The terminal block is mounted via through hole (THT) soldering to the PCB, with lead spacing of 5.00mm. It features side interlocking (side stackable) allowing multiple blocks to be joined together. The housing is black.
Typically used in control panels, industrial equipment, and power supplies where reliable wire-to-board connections are required. The part is claimed RoHS3 and REACH compliant (unverified). Moisture sensitivity level is MSL 1 unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.24 | $1.24 |
| 10+ | $0.90 | $0.90 |
| 25+ | $0.78 | $0.78 |
| 50+ | $0.71 | $0.71 |
| 100+ | $0.64 | $0.64 |
| 250+ | $0.57 | $0.57 |
| 500+ | $0.53 | $0.53 |
| 1,000+ | $0.50 | $0.50 |
| 5,000+ | $0.44 | $0.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 positions.
5.00 mm (0.197 inches).
20 A.
300 V.
Through hole.
14-24 AWG.
Screw - Clamping Yoke, Tension Sleeve.
