| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
31 pcs
|
31 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Base Material | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge or Range |

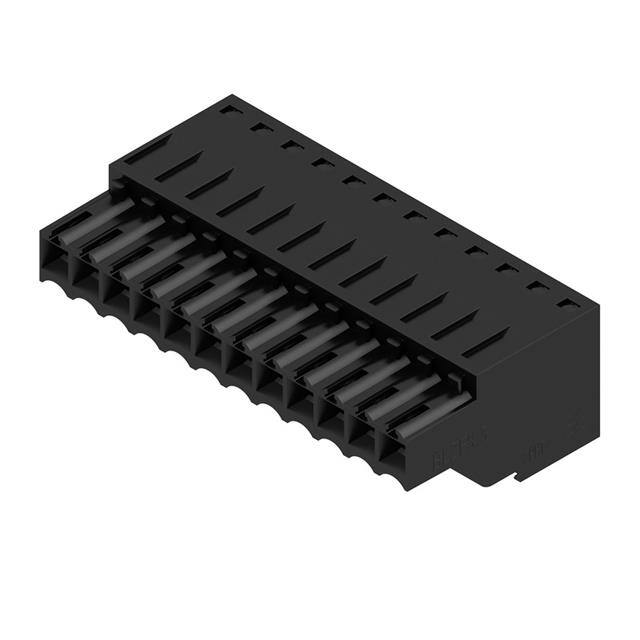

The Weidmüller 1690520000 (BLZF 3.5/12 SN SW) is a 12-position PCB plug-in connector featuring female sockets with a 3.50mm pitch. It uses a screwless spring cage (tension clamp) termination system for fast and reliable wire connections without tools. The plug accepts solid or flexible conductors from 0.2 mm² to 1.5 mm² (AWG 28-16) with a stripping length of 10 mm.
Rated at 10A (Tu=20°C) and 300V, this connector is suitable for a wide range of industrial and commercial applications. The insulating material is PBT with a flammability rating of UL 94 V-0, and the contact surface is tinned copper alloy. The plug is designed for free hanging (in-line) mounting with a 180° wire entry angle.
With an operating temperature range of -50°C to 100°C and IP20 finger-safe protection, this connector is robust for demanding environments. The standard package quantity is 50 pieces.
It has 12 positions (poles).
The pitch is 3.50 mm (0.138 inches).
The rated current is 10 A at 20°C (max. number of pins) and 8 A at 40°C.
The voltage rating is 300 V. Rated voltage for overvoltage category II/2 is 320 V, for III/2 and III/3 it is 160 V.
It is designed for free hanging (in-line) mounting.
It accepts solid or flexible conductors from 0.2 mm² to 1.5 mm² (AWG 28 to 16).
The operating temperature range is -50°C to 100°C.
