| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
31 pcs
|
31 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| IngressProtection | |
| Lead Spacing | |
| Mounting Type | |
| MountingType | |
| Number of Levels | |
| Number of Positions | |
| NumberOfPositions | |
| Operating Temperature | |
| OperatingTemperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| TerminationStyle | |
| Type | |
| Voltage | |
| Wire Gauge or Range | |
| awgRange | |
| clampingRange | |
| comparativeTrackingIndex | |
| contactBaseMaterial | |
| contactMatingFinish | |
| flammabilityClass | |
| insulationMaterial | |
| numberOfLevels | |
| packageType | |
| plugWireEntry | |
| positionsPerLevel | |
| ratedCurrentAt40C | |
| ratedImpulseWithstandVoltage | |
| ratedVoltageIEC_II2 | |
| ratedVoltageIEC_III2 | |
| ratedVoltageIEC_III3 | |
| screwdriverBladeSize | |
| standardPackageQuantity | |
| strippingLength | |
| wireGaugeRange |

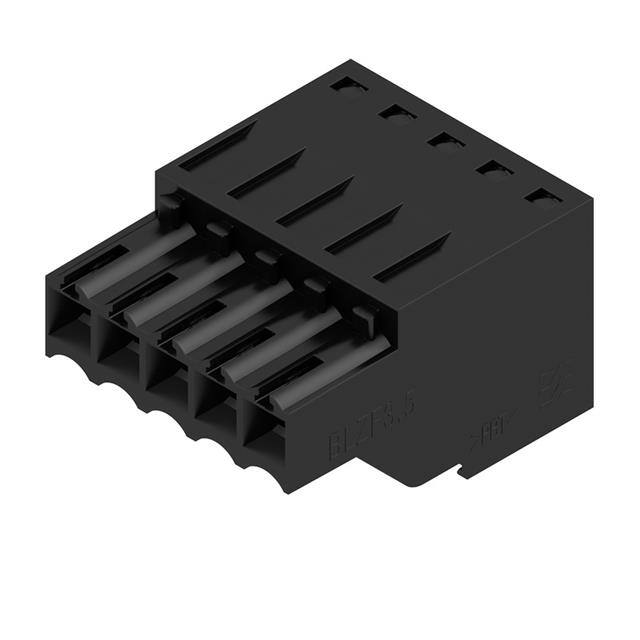

This is a Weidmüller BLZF 3.5 series terminal block plug with 5 positions and 3.5mm pitch. It is a female socket connector with tension clamp connection, suitable for free hanging (in-line) mounting. The plug wire entry is 180°.
Electrical ratings: 10A at 20°C ambient, 8A at 40°C, rated voltage 300V (UL/CSA Use Group D), and IEC ratings up to 320V. It has a rated impulse withstand voltage of 2.5kV. Wire range: 0.2-1.5 mm² solid/flexible, AWG 28-16. Stripping length 10mm.
Mechanical: Insulation material PBT, color black, flammability class UL 94 V-0, IP20 protection. Contact material copper alloy with tin plating. Operating temperature -50°C to 100°C. Packaging: box of 50 pieces.
This connector is suitable for industrial control systems, building automation, and power distribution applications requiring reliable wire-to-board connections.
5 positions.
3.50 mm (0.138 inches).
10 A at 20°C ambient, 8 A at 40°C.
300 V (UL/CSA Use Group D), 320 V (IEC).
Free hanging (in-line).
28 to 16 AWG (0.2-1.5 mm²).
-50°C to 100°C.
