| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,530 pcs
|
4530 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AWG Range | |
| Clamping Range | |
| Color | |
| Conductor Connection System | |
| Contact Base Material | |
| Contact Mating Finish | |
| Current | |
| Flammability | |
| Flammability Class | |
| Insulating Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Rated Current (20°C, 14 pins) | |
| Rated Current (40°C, 14 pins) | |
| Rated Impulse Withstand Voltage (II/2) | |
| Rated Impulse Withstand Voltage (III/2) | |
| Rated Impulse Withstand Voltage (III/3) | |
| Rated Voltage (II/2) | |
| Rated Voltage (III/2) | |
| Rated Voltage (III/3) | |
| SVHC Present | |
| Standard Package Qty | |
| Stripping Length | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

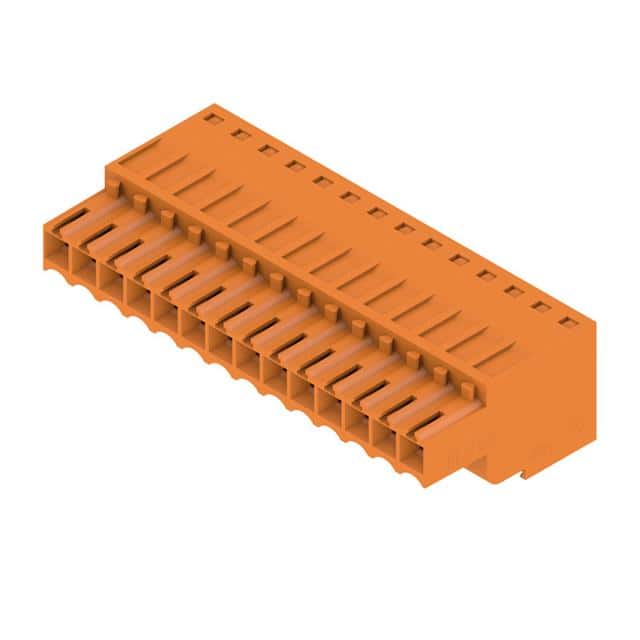

The Weidmüller 1690310000 is a 14-position plug designed for use in terminal block systems. It features a 3.50mm pitch and a screwless tension clamp connection system, allowing for quick and tool-free wire termination. The plug accepts solid or stranded conductors from 0.13 to 1.5 mm² (28-16 AWG) with a stripping length of 10 mm.
Electrically, the plug is rated for 10 A at 20°C and 300 V (rated voltage 320 V for overvoltage class II/pollution severity 2). Impulse withstand voltage is 2.5 kV. The operating temperature range is -50°C to 100°C. The plug is suitable for free hanging (in-line) mounting and features a 180° wire entry angle.
Constructed with PBT insulating material rated UL 94 V-0, the plug offers good flammability resistance. Contacts are made of tinned copper alloy for reliable conductivity. The orange color (similar to RAL 2000) aids visual identification. Standard packaging is 50 pieces per box.
14 positions.
3.5 mm (0.138 inches).
10 A at 20°C, derated to 8 A at 40°C (with 14 pins).
300 V general rating; rated voltage is 320 V for overvoltage class II/pollution severity 2, and 160 V for class III/severity 2 or 3.
Free hanging (in-line) mounting.
Solid or stranded conductors from 0.13 to 1.5 mm² (28-16 AWG).
-50°C to 100°C.
