| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Base Material | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Package Quantity | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

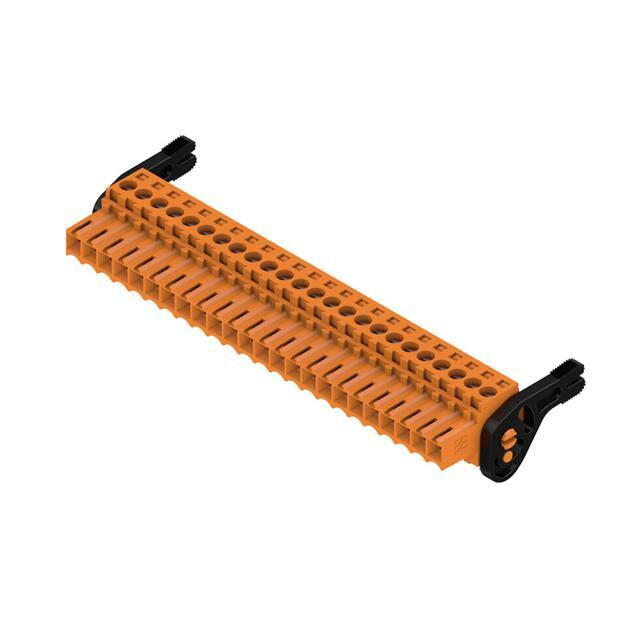

The Weidmüller 1687870000 (BL 3.5/24LH SN OR) is a 24-position PCB plug-in connector with a 3.5mm pitch. It features a female socket design with screw clamp (clamping yoke) termination, suitable for solid and flexible conductors from 0.2 to 1.5 mm². The plug has a free hanging (in-line) mounting type with 180° wire entry and includes ejector latches for secure mating.
Rated electrical specifications include 300V (UL) and 320V (IEC overvoltage class II/2) with a maximum current of 10A (derated for full pin count). The operating temperature range is -50°C to 100°C. The insulating material is PBT with UL 94 V-0 flammability rating, and contacts are copper alloy with tin plating.
The connector is packaged in quantities of 20 pieces. It is designed for use in industrial control systems, automation equipment, and power distribution where reliable screw clamp connections are required. The compact 3.5mm pitch allows for high-density wiring in limited panel space.
| Qty | Low | High |
|---|---|---|
| 18+ | $23.31 | $23.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24 positions.
3.5 mm.
The rated current is 10 A for maximum pin count at 40°C and 17 A for minimum pin count at 20°C.
300 V (UL) and 320 V (IEC overvoltage class II/2).
Free hanging (in-line).
0.2 to 1.5 mm² (AWG 28-14).
-50°C to 100°C.
