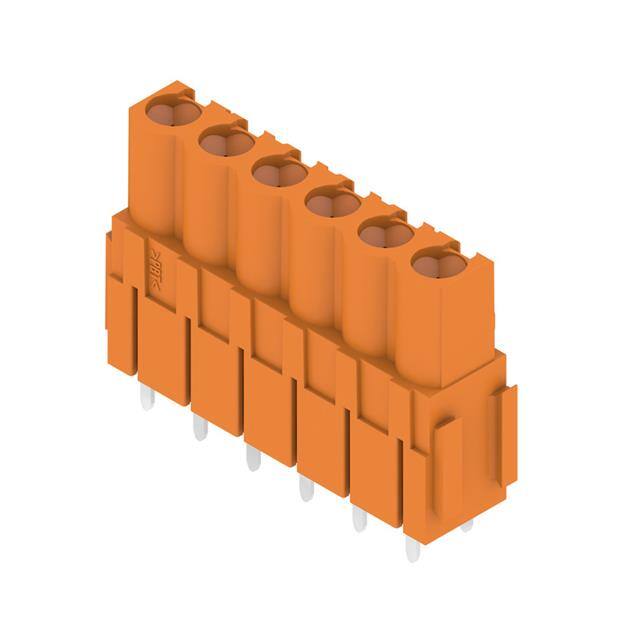

1682770000 Weidmüller 1682770000 is a 6-position, 5.08mm pitch terminal block header with vertical through-hole mounting. It features tin-plated contacts and retention latches.
Mfr Part #:

1682770000

Available from 1 distributors
Mfr Name: Weidmüller
Weidmüller
Weidmüller 1682770000 is a 6-position, 5.08mm pitch terminal block header with vertical through-hole mounting. It features tin-plated contacts and retention latches.
✓ Total Stock: 49 pcs

1682770000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
49 pcs
On Request
49 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1682770000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Halogen Free
Header Orientation
Lead Spacing
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
View Similar Products (0)

1682770000 Description

Short technical summary and product information.

The Weidmüller 1682770000 is a 6-position terminal block header designed for wire-to-board connections in industrial control and automation systems. With a 5.08mm pitch and vertical through-hole mounting, it simplifies PCB layout and provides reliable mating. The header features tin-plated female sockets and includes retention latches for secure mechanical retention. Rated for 300V and 15A, it operates over a temperature range of -50°C to 100°C. Its orange insulator color aids in visual identification. The single-level design accommodates up to 6 circuits per level.

1682770000 Quick Information

Product Type: Header, Female Sockets
Series: BLL
Canonical Name: Header, Female Sockets, 6 Positions, 5.08mm Pitch, Through Hole, Vertical
Subcategory: Headers

1682770000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

1682770000 Features

  • 6-position female header with 5.08mm pitch.
  • Vertical through-hole mounting design.
  • Rated for 300V and 15A operation.
  • Tin-plated contacts for reliable connection.
  • Integrated retention latches for secure mating.

1682770000 Applications

  • Industrial control panel wiring applications.
  • Automation system terminal block interfaces.
  • Power distribution in machinery assemblies.
  • Ideal for wire-to-board connections.

1682770000 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

6 positions.

What is the pitch of the Weidmüller 1682770000?

5.08mm (0.200 inches).

What is the current rating?

15 A.

What is the voltage rating?

300 V.

What is the mounting type?

Through hole.

What is the operating temperature range?

-50°C to 100°C.

Does this header have any special features?

Yes, it includes retention latches.
