1658-G21-02-P10-055800-10A
ETA

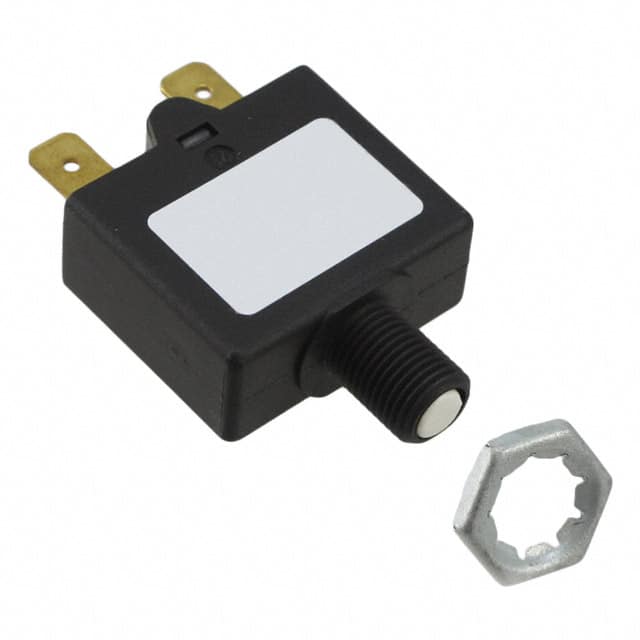

The E-T-A 1658-G21-02-P10-055800-10A is a thermal circuit breaker designed for panel mounting. It features a 10A current rating and supports 240VAC or 28VDC operation.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |
The E-T-A 1658-G21-01-P10-10A is a single-pole thermal circuit breaker with a current rating of 10A. It is designed for panel mounting and features a manual reset actuator.
This circuit breaker is approved to UL, CSA, VDE, and EN 60934 (IEC 60934) standards. It has a voltage rating of 240 VAC and 28 VDC, with an interrupting capacity of 200A for currents between 8-30A and 180A for currents between 5-7A.
Typical applications for this series include battery chargers, consumer products, power supplies, and motors. The device operates within an ambient temperature range of -20°C to +60°C and has a degree of protection of IP40 in the operating area.
Key technical data includes a dielectric strength of 3000 VAC and an insulation resistance greater than 100 MΩ. The breaker has a mass of approximately 16g and is designed with no exposed metal parts that could become current-carrying.
The circuit breaker is rated for 240VAC and 28VDC.
The current rating is 10A.
The operating temperature range is -20°C to +60°C.
The breaker is panel mount with a threadneck design.
The actuator is push-to-reset.
It is a single-pole circuit breaker.
Interrupting capacity is 200A for 8-30A ratings and 180A for 5-7A ratings.
