Mfr Part #:

1644760000

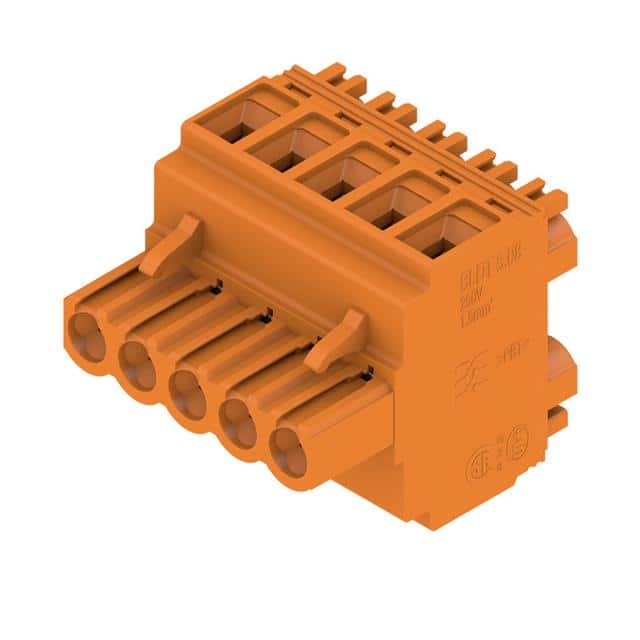

Weidmüller 1644760000 is a 5.08mm pitch pluggable terminal block with female sockets, featuring 5 positions on the mating side and 10 positions on the input side. It is rated for 300V and 10A, with a free hanging mounting and screw clamping termination.

✓ Total Stock: 86 pcs

$ Price Range: $3.35

1644760000 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	86 pcs On Request	86 pcs	On Request	1	On Request	On Request	2026-02-25 06:16:38	On Request	On Request

1644760000 Description

Short technical summary and product information.

This is a Weidmüller BLDT 5.08 series PCB plug-in connector, part number 1644760000. It is a female socket connector with clamping yoke connection, designed for 5.08mm pitch. The connector has 5 poles on the mating side and 10 poles on the input side (2 rows). It is rated for 300V (UL/CSA) and 10A, with a wire gauge range of 0.2-2.5 mm² (26-12 AWG). The operating temperature range is -50°C to 100°C.

The connector features a screw clamping yoke termination with a tightening torque of 0.4-0.5 Nm and a stripping length of 7 mm. The contact material is copper alloy with tin plating. The insulating material is PBT with flammability rating UL 94 V-0 and CTI ≥200. The connector has an IP20 protection rating and is color orange (similar to RAL 2000).

This plug is suitable for free hanging (in-line) mounting and features retention latches on the non-wire side. The wire entry is at 90° and 270°. The package quantity is 50 pieces per box. The connector is compliant with RoHS and REACH (unverified). It is designed for use in industrial control systems, automation, and power distribution applications.

1644760000 Quick Information

Product Type: Terminal Block Plug, Female Sockets

Series: BLDT 5.08

Canonical Name: Weidmüller BLDT 5.08/5 SN OR Plug, Female Sockets Terminal Block, 5.08mm Pitch, 5 Positions (Mate), 10 Positions (Input)

Subcategory: Female Connectors

1644760000 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

1644760000 Estimated Pricing

Qty	Low	High
60+	$3.35	$3.35

Estimated market price range - modelled values for guidance only, not live distributor offers.

1644760000 Features

5.08mm pitch with 5/10 positions.
Screw clamping yoke termination.
Rated for 300V and 10A.
Free hanging in-line mounting.
Orange PBT insulating material.

1644760000 Applications

Industrial control panel wiring.
Automation and power distribution.
PCB-to-wire connections.
Signal and power transmission.

1644760000 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does this terminal block have?

5 positions on the mating side and 10 positions on the input side.

What is the pitch of this connector?

5.08 mm (0.200 inches).

What is the current rating?

10 A (UL/CSA), with rated currents up to 14 A at 20°C and 12 A at 40°C.

What is the voltage rating?

300 V (UL/CSA). Also rated 400 V (II/2), 320 V (III/2), and 250 V (III/3) per IEC.

What is the mounting type?

Free hanging (in-line).

What wire gauge is supported?

0.2-2.5 mm² solid or flexible, with clamping range 0.13-3.31 mm² (26-12 AWG).

What is the operating temperature range?

-50°C to 100°C.

Category	Headers, Plugs and Sockets
Manufacturer Name	Weidmüller
Color	Orange
Contact Material	Copper alloy
Contact Mating Finish	Tin
Current	10 A
Features	Retention Latches (Non-Wire Side)
Lead Spacing	5.08 mm
Lead Style	Screw - Clamping Yoke (Tension Sleeve)
Mounting Type	Free Hanging (In-Line)
Number of Levels	1 (Mate), 2 (Input)
Number of Positions	5 (Mate), 10 (Input)
Operating Temperature	-50°C ~ 100°C
Pitch	5.08mm (0.200")
Plug Wire Entry	90° and 270°
Positions Per Level	5
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Type	Plug, Female Sockets
Voltage	300 V
Wire Gauge or Range	0.2-2.5 mm²
