| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AWG Range | |
| CTI (Comparative Tracking Index) | |
| Color | |
| Contact Base Material | |
| Contact Mating Finish | |
| Current | |
| Current (Rated) | |
| Flammability Class | |
| Insulating Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Outgoing Direction of Conductor | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Screwdriver Blade | |
| Standard Package Quantity | |
| Stripping Length | |
| Termination Style | |
| Tightening Torque | |
| Type | |
| Voltage | |
| Voltage - Rated | |
| Voltage - Rated (II/2) | |
| Wire Gauge Range | |
| Wire Gauge or Range |

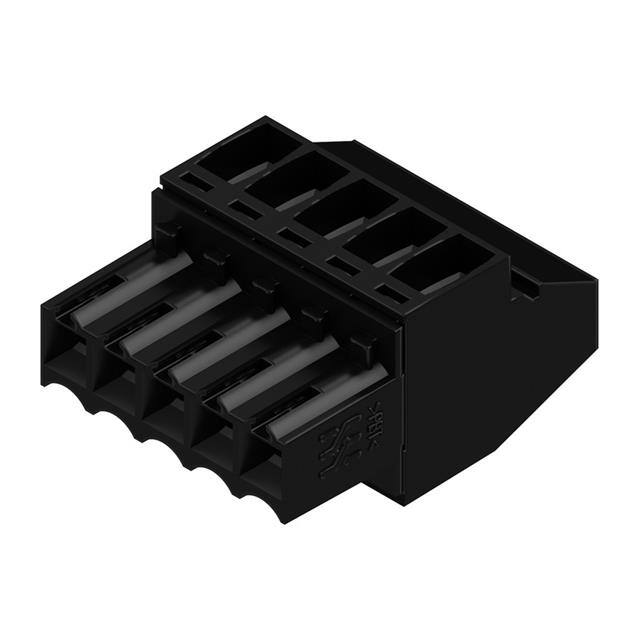

The Weidmüller 1638810000 (BL 3.5/5/90 SN SW) is a 5-position PCB plug-in connector with screw clamp (clamping yoke) termination. It has a pitch of 3.50mm and a 90° outgoing wire direction, making it suitable for compact wiring applications in terminal block headers.
This female plug accepts solid or flexible conductors from 0.2 to 1.5 mm² (14 to 28 AWG). Electrical ratings are 300V (UL) and 8A at 40°C, with a rated voltage of 320V for overvoltage class II/pollution severity 2. The insulating material is PBT (UL 94 V-0) with a CTI of ≥200, and contacts are copper alloy with tin plating.
Mechanical specifications include a stripping length of 6mm, tightening torque of 0.2 to 0.25 Nm, and operating temperature range of -50°C to 100°C. The plug is free hanging (in-line) mounted and sold in bulk packs of 50 pieces.
It has 5 positions.
The pitch is 3.50mm (0.138 inches).
The rated current is 8A at 40°C.
The UL rated voltage is 300V.
Free hanging (in-line) mounting.
It accepts 14-28 AWG (0.2-1.5mm²) solid or flexible wire.
-50°C to 100°C.
