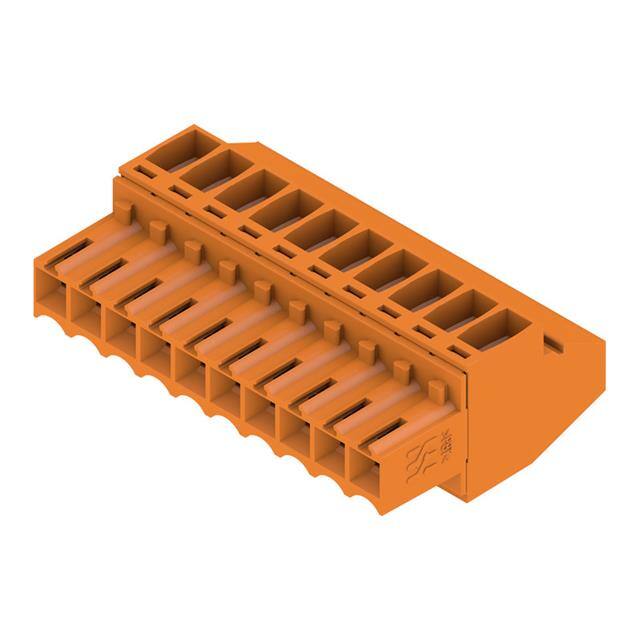

The Weidmüller 1638630000 (BL 3.5/10/90 SN OR) is a 10-position plug-in connector designed for PCB connection systems. It features screw clamp yoke termination for reliable wire clamping, with a 90° wire entry direction. The connector is rated for 12 A per pole at 20°C (IEC) and 8 A (UL 1059 Use Group D), with rated voltages of 320 V (IEC II/2) and 300 V (UL/CSA Use Group D).
The insulating material is PBT (insulating material group IIIa) with an orange color (similar to RAL 2000) and flammability class UL 94 V-0. The contact base material is copper alloy with a tin-plated surface. The connector accepts wire sizes from 0.08 mm² to 1.5 mm² (28 AWG to 14 AWG) and requires a stripping length of 6 mm. Tightening torque is 0.2-0.25 Nm.
This plug is free hanging (in-line) mounting type, suitable for use in industrial control systems, automation, and power distribution. The pitch is 3.50 mm, and the product has an IP20 protection rating. Standard package quantity is 50 pieces.
10 positions.
3.50 mm (0.138 inches).
12 A per pole at 20°C (IEC) and 8 A (UL 1059 Use Group D).
320 V (IEC II/2) and 300 V (UL/CSA Use Group D).
Free hanging (in-line) with 90° wire entry.
0.08-1.5 mm² solid/flexible, or 28-14 AWG.
-50°C to 100°C.
