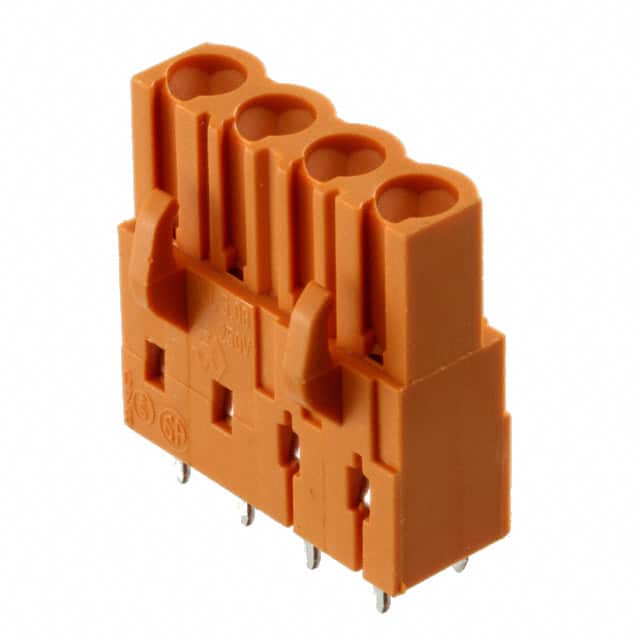

1630730000 Weidmüller 1630730000 is a 4-pole female header with 5.08mm pitch, vertical orientation, solder termination, and through hole mounting. Rated 15A/300V UL and 23A/400V IEC.
Mfr Part #:

1630730000

Available from 1 distributors
Mfr Name: Weidmüller
Weidmüller
Weidmüller 1630730000 is a 4-pole female header with 5.08mm pitch, vertical orientation, solder termination, and through hole mounting. Rated 15A/300V UL and 23A/400V IEC.
✓ Total Stock: 40 pcs

1630730000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1630730000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Material
Contact Mating Finish
Current
Features
Header Orientation
Industrial Grade
Insulation Resistance
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Poles
Number of Positions
Operating Temperature
Pitch
Positions Per Level
SVHC Present
Storage Temperature
Termination Style
Type
Voltage
View Similar Products (0)

1630730000 Description

Short technical summary and product information.

The Weidmüller 1630730000 (BLL 5.08/04/180 3.2 SN OR BX) is a PCB plug-in connector female header designed for wave flow soldering. It features 4 poles with a 5.08mm pitch in a single row, vertical orientation. The header is orange with PBT GF insulation and tinned copper alloy contacts.



Rated for 400V/23A per IEC and 300V/15A per UL standards. It has a rated impulse withstand voltage of 4 kV and insulation resistance of 10^3 MΩ. Operating temperature range is -50°C to 100°C.



The header includes retention latches for secure mating and can be coded for keying. It meets UL 94 V-0 flammability rating. Packaging is in boxes. Solder pin length is 3.2 mm.

1630730000 Quick Information

Product Type: Terminal Block Header, Female Sockets
Series: OMNIMATE Signal
Canonical Name: Weidmüller BLL 5.08/04/180 3.2 SN OR BX PCB Plug-in Connector, Female Header, 4 Pole, 5.08mm Pitch, Vertical, Solder, Through Hole
Subcategory: PCB Plug-in Connector

1630730000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1630730000 Features

  • 4-pole vertical female header with 5.08mm pitch.
  • Rated 15A/300V UL and 23A/400V IEC.
  • Through hole solder termination with 3.2mm pin length.
  • Orange PBT GF insulation, UL 94 V-0 rated.
  • Includes retention latches for secure mating.

1630730000 Applications

  • Ideal for PCB-to-wire connections in industrial controls.
  • Used in power distribution and signal interface modules.
  • Suitable for wave flow soldering assembly processes.

1630730000 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

4 positions.

What is the pitch?

5.08 mm.

What is the current rating?

15 A per UL, 23 A per IEC.

What is the voltage rating?

300 V per UL, 400 V per IEC.

What is the mounting type?

Through hole.

What is the operating temperature range?

-50°C to 100°C.

What is the flammability rating?

UL 94 V-0.
