| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Header Orientation | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Positions Per Level | |
| Storage Temperature | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating |

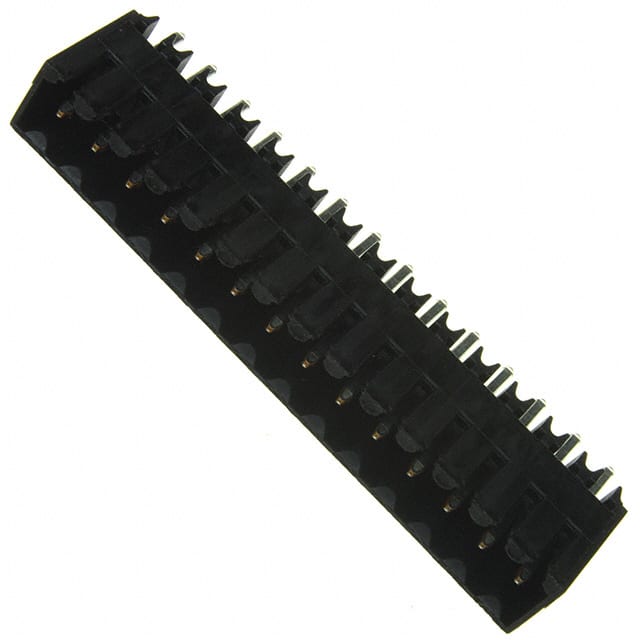

The Weidmüller 1616120000 is a 14-position terminal block header designed for use in industrial control and automation systems. It features a 3.5mm pitch and a vertical orientation, making it suitable for compact PCB layouts where space is at a premium.
The header is shrouded on all four sides, providing protection for the male pins and ensuring reliable mating with compatible plugs. The through hole mounting style offers robust mechanical attachment to the PCB, while the solder termination ensures a secure electrical connection.
Electrical ratings include a voltage rating of 300V and a current rating of 10A, suitable for signal and moderate power applications. The operating temperature range is -20°C to 100°C, allowing use in a variety of environments. The contact mating finish is tin, providing good conductivity and corrosion resistance. The housing is black, a common color for industrial connectors.
The 1616120000 has 14 positions.
The pitch is 3.5mm.
The current rating is 10A.
The voltage rating is 300V.
It uses through hole mounting.
The operating temperature range is -20°C to 100°C.
The contact mating finish is tin.
