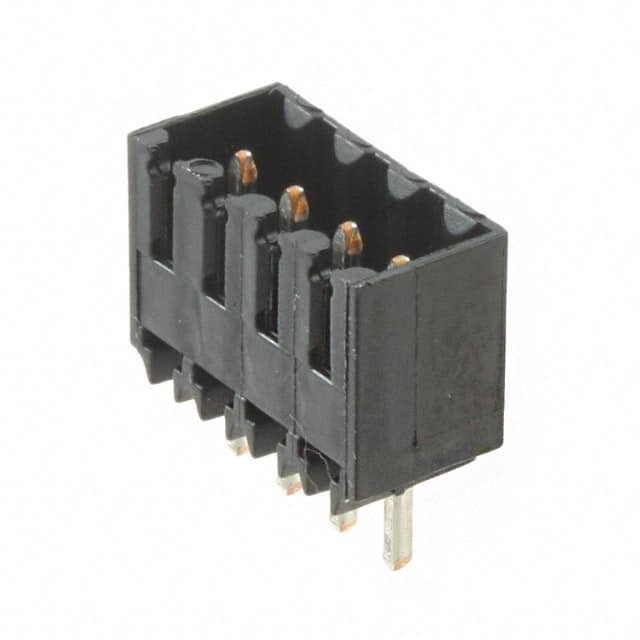

1616030000 This is a 4-position, 3.5mm pitch vertical header from Weidmüller. It features a shrouded design, through hole mounting, and tin-plated contacts.
Mfr Part #:

1616030000

Available from 1 distributors
Mfr Name: Weidmüller
Weidmüller
This is a 4-position, 3.5mm pitch vertical header from Weidmüller. It features a shrouded design, through hole mounting, and tin-plated contacts.
✓ Total Stock: 5 pcs

1616030000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1616030000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1616030000 Description

Short technical summary and product information.

The Weidmüller 1616030000 is a terminal block header designed for use in industrial control systems. It has 4 positions arranged in a single level with a pitch of 3.5mm. The header is vertical and shrouded on all four sides, providing protection and polarization. It is rated for 300V and 10A, with an operating temperature range of -20°C to 100°C. The through hole mounting with solder termination ensures reliable connections. The black housing and tin-plated contacts offer durability and corrosion resistance.

1616030000 Quick Information

Product Type: Terminal Block Header
Series: SL
Canonical Name: Weidmüller 1616030000 4-Position 3.5mm Pitch Vertical Header
Subcategory: Shrouded Header

1616030000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1616030000 Features

  • Four positions with 3.5mm pitch spacing.
  • Vertical shrouded header design.
  • Rated for 300V and 10A.
  • Through hole solder termination.
  • Operating range -20°C to 100°C.

1616030000 Applications

  • Industrial control panel wiring.
  • Power distribution in machinery.
  • Sensor and actuator connections.
  • PLC and I/O module interfaces.

1616030000 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

4 positions.

What is the pitch of this header?

3.50mm (0.138 inches).

What is the current rating?

10A.

What is the voltage rating?

300V.

What is the mounting type?

Through hole, solder termination.

What is the orientation of this header?

Vertical.

What is the operating temperature range?

-20°C to 100°C.
