| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
36 pcs
|
36 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Base Material | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| SVHC Present | |
| Storage Temperature | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

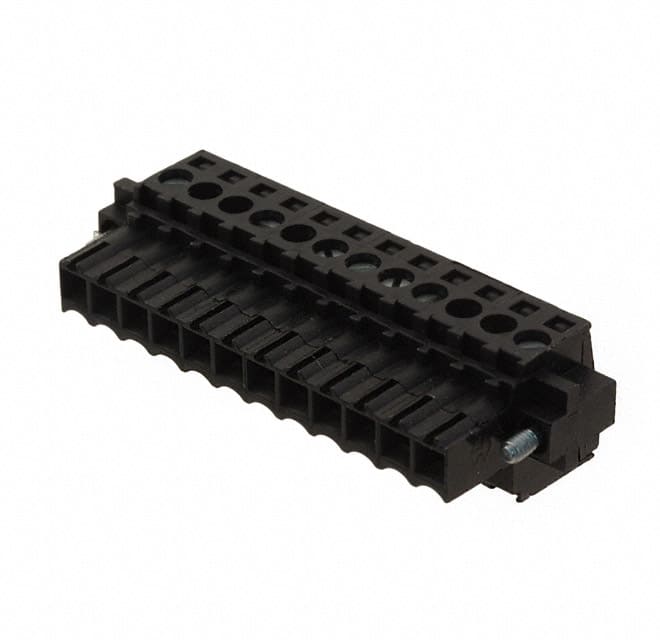

The Weidmüller 1615880000 (BL 3.5/12F SN SW) is a 12-position plug connector with female sockets, designed for 3.5mm pitch. It features a clamping yoke (screw) termination with a 180° wire entry. The plug is free hanging (in-line) and has a mating flange. Electrical ratings include 10A current and 300V voltage (UL/CSA). The operating temperature range is -50°C to 100°C. The contact material is copper alloy with tin plating. The insulating material is PBT with UL 94 V-0 flammability rating. Wire range is 0.2-1.5 mm² (14-28 AWG). Stripping length is 6 mm and tightening torque 0.2-0.25 Nm. The product is RoHS and REACH compliant (unverified). Standard package quantity is 50 pieces. Rated current varies with pin count: 12-17A at 20°C, 10-14.5A at 40°C. Rated impulse withstand voltage is 2.5kV. Short-time withstand current is 100A for 3x1s.
12 positions.
3.50mm (0.138 inches).
10A (UL/CSA rating).
300V (UL/CSA).
Free hanging (in-line).
Screw - clamping yoke (tension sleeve).
0.2-1.5 mm² (14-28 AWG).
