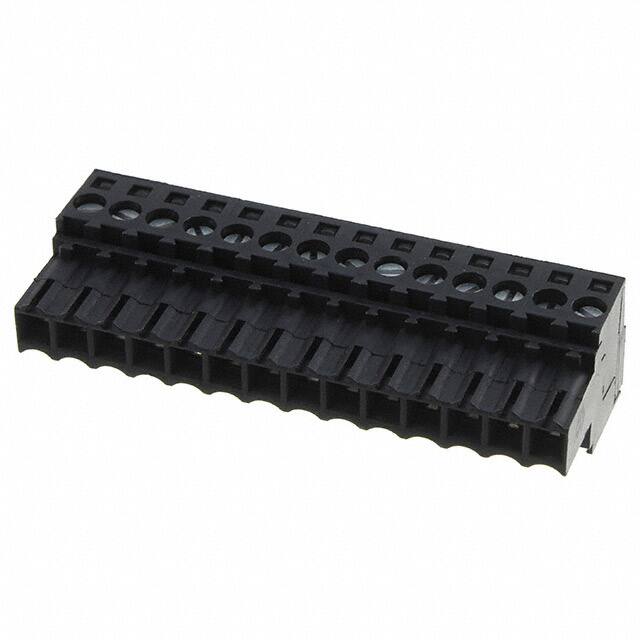

The Weidmüller 1615750000 (BL 3.5/14 SN SW) is a 14-position terminal block plug with female sockets and a 3.5mm pitch. It features a screw clamp (clamping yoke) connection system, suitable for solid and flexible conductors from 0.2mm² to 1.5mm² (14-28 AWG). The plug is free hanging (in-line) with a 180° wire entry direction, and is rated for 10A current and 300V voltage.
Constructed with PBT insulating material (UL 94 V-0 flammability class) and tinned copper alloy contacts, the connector has an operating temperature range of -50°C to 100°C. The clamping screw is M2 with a tightening torque of 0.2-0.25 Nm, and the stripping length is 6mm. The plug offers IP20 finger touch protection and meets CTI >= 200.
Key electrical ratings include rated impulse withstand voltage of 2.5 kV and short-time withstand current of 100A for 3 x 1s. The part is RoHS3 compliant and REACH unaffected, with UL 94 V-0 flammability certification verified. Packaging is 50 pieces per box.
It has 14 positions.
The pitch is 3.50mm (0.138 inches).
The rated current is 10 A (300 V). At 20°C, the current range is 12-17 A depending on number of pins.
The rated voltage is 300 V. For overvoltage class II/2 it is 320 V, and for class III/2 and III/3 it is 160 V.
It is free hanging (in-line) with a 180° wire entry.
The operating temperature range is -50°C to 100°C.
The insulating material is PBT with flammability class UL 94 V-0.
