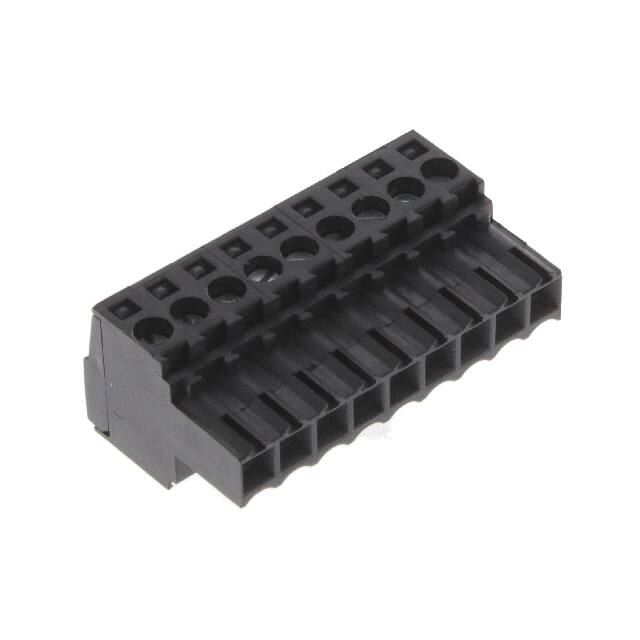

1615710000 Weidmüller BL 3.5/9 SN SW, a 9-position plug with female sockets, 3.50mm pitch, screw clamp termination, rated 10A/300V.
Mfr Part #:

1615710000

Available from 1 distributors
Mfr Name: Weidmüller
Weidmüller
Weidmüller BL 3.5/9 SN SW, a 9-position plug with female sockets, 3.50mm pitch, screw clamp termination, rated 10A/300V.
✓ Total Stock: 54 pcs

1615710000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
54 pcs
On Request
54 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1615710000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Base Material
Contact Mating Finish
Current
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Operating Temperature
Pitch
Plug Wire Entry
Positions Per Level
SVHC Present
Storage Temperature
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1615710000 Description

Short technical summary and product information.

The Weidmüller 1615710000 (BL 3.5/9 SN SW) is a 9-position PCB plug-in connector with female sockets, designed for free hanging (in-line) mounting. It features a 3.50mm pitch and a screw - clamping yoke (tension sleeve) termination style, accepting solid or flexible wires from 0.08 mm² to 1.5 mm² (28 AWG to 14 AWG). The plug is rated for 10 A at 300 V (UL/CSA) and operates over a temperature range of -50°C to 100°C. The insulating body is made of black PBT (UL 94 V-0), and the contacts are copper alloy with a tin (tinned) mating finish. The plug offers a 180° wire entry direction and includes IP 20 finger-safe protection.

1615710000 Quick Information

Product Type: Terminal Block Plug
Series: BL 3.5
Canonical Name: Weidmüller BL 3.5/9 SN SW PCB plug-in connector, 9-position, 3.50mm pitch, screw clamp, female socket
Subcategory: Female socket connector

1615710000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1615710000 Features

  • 9-position female socket plug with 3.50mm pitch.
  • Screw clamp termination for secure wire connection.
  • Rated 10A at 300V (UL/CSA).
  • Free hanging (in-line) mounting style.
  • Black PBT housing, UL 94 V-0 rated.

1615710000 Applications

  • Industrial control panel wiring applications.
  • Building automation and HVAC systems.
  • Power distribution and signal connections.
  • Sensor and actuator interface modules.

1615710000 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1615710000 have?

9 positions.

What is the pitch of this connector?

3.50 mm (0.138 inches).

What is the current rating?

10 A (at 40°C ambient) or 12 A (at 20°C ambient) for 9 pins.

What is the voltage rating?

300 V (UL/CSA Use Group D) or 320 V (Pollution Severity II/2).

What mounting type does this plug use?

Free hanging (in-line).

What wire sizes are accepted?

Solid or flexible wire from 0.08 mm² to 1.5 mm² (28 AWG to 14 AWG).

What is the operating temperature range?

-50°C to 100°C.
