| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,000 pcs
|
15000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Length | |
| Mounting Type | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

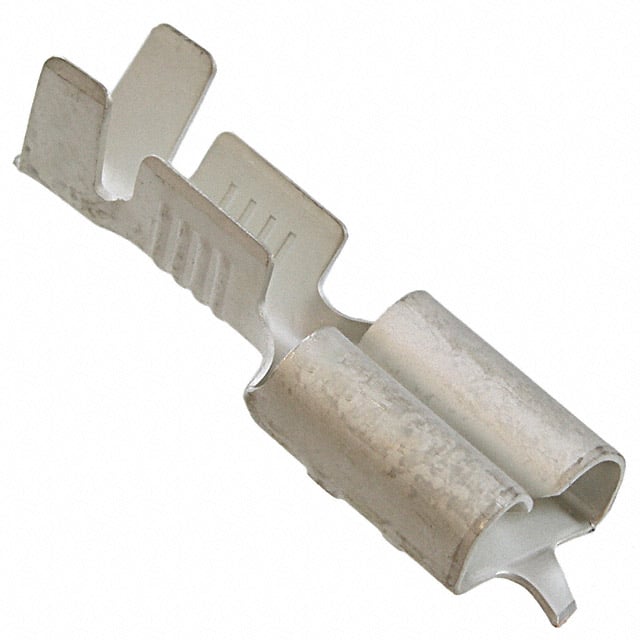

The TE Connectivity 160927-4 is a non-insulated quick disconnect receptacle designed for reliable wire connections. It features a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness, ensuring compatibility with standard mating tabs. The connector accepts wire gauges from 13.5 to 17 AWG and uses a crimp termination for secure, vibration-resistant connections.
Constructed with phosphor bronze contacts and a tin finish, the 160927-4 offers good conductivity and corrosion resistance. The free hanging (in-line) mounting style provides flexibility for routing in harness assemblies. With an overall length of 19.20mm (0.756"), it is compact for space-constrained applications.
This female terminal is part of TE's standard terminal family and is suitable for a variety of electrical and electronic interconnection needs. The non-insulated design allows for close spacing in multi-circuit connectors.
Free hanging (in-line).
13.5-17 AWG.
0.250 inches (6.35 mm).
Crimp.
Phosphor bronze.
Tin.
No, it is non-insulated.
