| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| SVHC Present | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

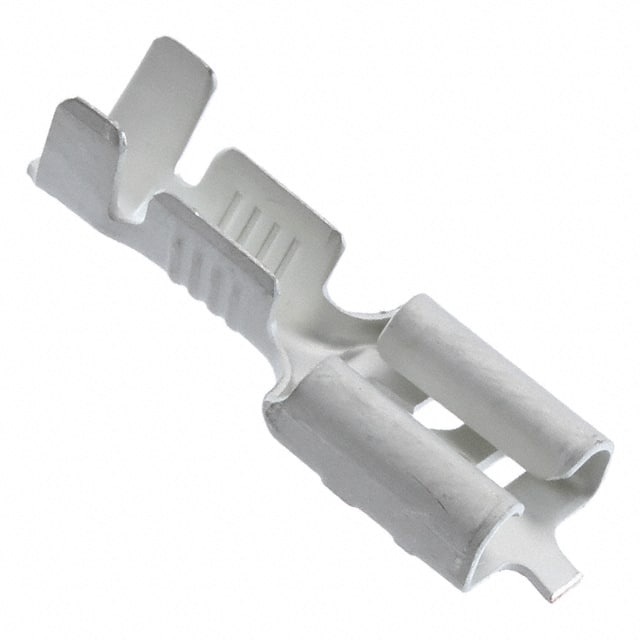

The TE Connectivity 160917-4 is a non-insulated quick connect receptacle designed for reliable wire connections. It features a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness, making it suitable for standard quick disconnect applications. The terminal accepts 13.5-17 AWG wire and uses a crimp termination style for secure attachment.
Constructed from phosphor bronze with a tin finish, the contact offers good conductivity and corrosion resistance. The female terminal is designed for free hanging (in-line) mounting, allowing flexible placement in wiring harnesses or panel assemblies. With an overall length of 19.20mm (0.756"), it is compact for dense wiring layouts.
This terminal is commonly used in automotive, industrial, and consumer electronic applications where quick and reliable disconnectability is required. The non-insulated design allows for use with separate insulation or in applications where insulation is not needed.
Free Hanging (In-Line).
13.5-17 AWG.
0.250" (6.35mm).
Phosphor Bronze with Tin finish.
No, it is non-insulated.
Crimp.
Female.
