| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Base Material | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Header Orientation | |
| Insulation Resistance | |
| Lead Spacing | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Positions Per Level | |
| Rated Voltage | |
| SVHC Present | |
| Storage Temperature | |
| Termination Style | |
| Type | |
| Voltage |

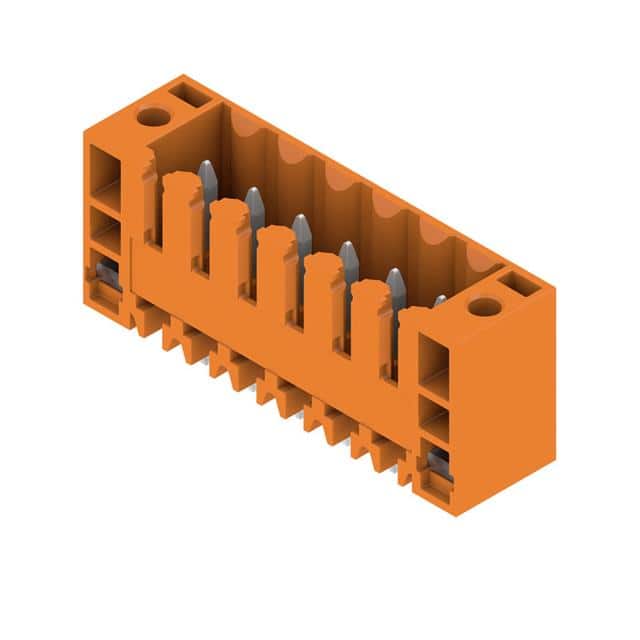

The 1607540000 is a 6-position, 1-level PCB plug-in connector header from Weidmüller's SL 3.5/180F series. It features male pins with a shrouded (4 side) design and a vertical orientation. The connector has a 3.50mm pitch and terminates via through hole solder pins with a 3.2mm length.
Rated for 10 A at 300 V, the header is constructed with a PBT insulating material rated UL 94 V-0 and tinned CuSn contacts. It is designed for soldered connection to a PCB and includes a mating and mounting flange. The operating temperature range is -25°C to 100°C.
This header is suitable for industrial control systems, power supplies, and building automation where reliable and compact PCB connections are needed.
The pitch is 3.50mm (0.138 inches).
It has 6 positions (1 level, 6 positions per level).
The maximum rated current is 10 A (at 40°C) and up to 12 A (at 20°C).
The rated voltage is 300 V (for overvoltage class II/2) and 160 V (for III/3 and III/2).
It is a through hole mounting connector with solder termination.
The constant operating temperature range is -25°C to 100°C.
The insulating material is rated UL 94 V-0.
