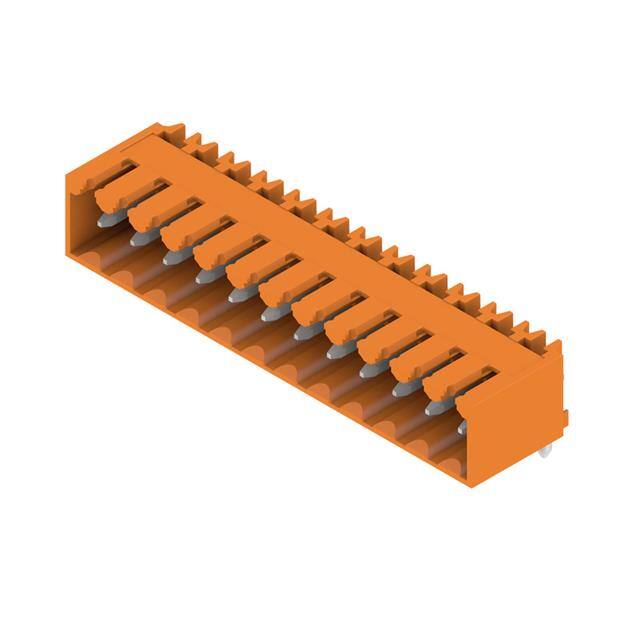

The Weidmüller SL 3.5/12/90G3.2SN OR (1605170000) is a 12-pole PCB plug-in connector header designed for reliable solder connection. It features a 3.50mm pitch and a 90° right angle orientation, making it suitable for compact PCB layouts where vertical space is limited.
This shrouded header (4-sided) has male pins with a tin-plated contact surface over a CuSn (bronze) base material, ensuring good conductivity and corrosion resistance. It is rated for up to 12 A at 20°C and 300 V (UL Use Group D). The insulating material is orange PBT with a flammability class of UL 94 V-0. The header can be coded for keyed mating.
Packaged in a box of 50 pieces, the component is designed for constant operation from -25°C to +100°C and storage from -25°C to +55°C with 80% max relative humidity.
This header has 12 positions (12 poles).
The pitch is 3.50 mm (0.138 inches).
The rated current is 12 A max at 20°C (10 A at 40°C). The rated voltage for UL Use Group D is 300 V.
It uses through-hole mounting with solder termination and a right-angle (90°) orientation.
RoHS compliance status is present but unverified in the source data; treat as low confidence.
