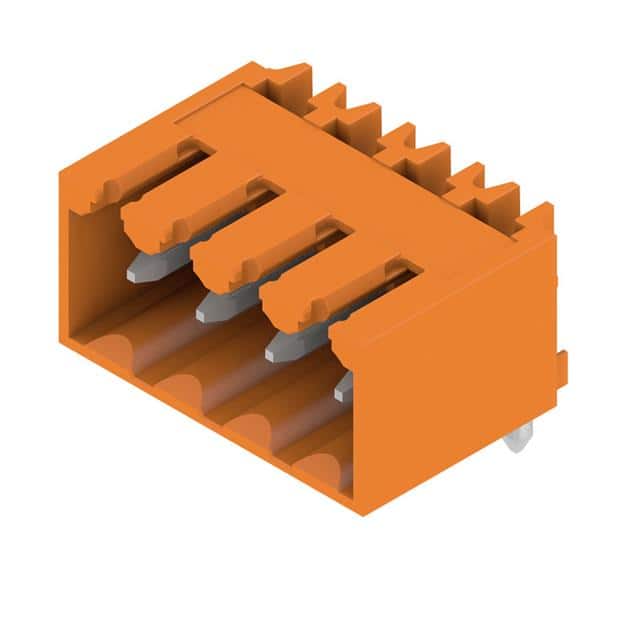

The Weidmüller SL 3.5/4/90G3.2SN OR (order number 1605090000) is a 4-position PCB plug-in connector header with male pins arranged in a single row. It features a 3.5mm pitch and a right-angle (90°) exit orientation for space-constrained board layouts. The component is designed for through-hole soldered termination and is fitted with a solder pin length of 3.2mm.
Electrically, the header is rated for 12A continuous current at 20°C ambient (10A at 40°C) and 160V operating voltage (overvoltage class III/pollution severity 3), with a rated impulse withstand voltage of 2.5kV. The contacts are made of CuSn with a tin-plated mating finish, ensuring reliable conductivity and corrosion resistance.
The insulation material is orange PBT (similar to RAL 2000) with a UL 94 V-0 flammability rating and a CTI of ≥ 200. The component operates over a temperature range of -25°C to 100°C and can be stored between -25°C and 55°C. It is supplied in a standard packaging quantity of 100 pieces per box.
The pitch is 3.5 mm.
This header has 4 positions arranged in 1 level.
The rated current is 12 A at 20°C and 10 A at 40°C for all pins.
The rated voltage is 160 V for overvoltage class III/pollution severity 3.
This component uses through-hole mounting with solder termination.
The constant operating temperature range is -25°C to 100°C.
The insulation material is PBT with a flammability class UL 94 V-0.
