| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CTI | |
| Color | |
| Contact Base Material | |
| Contact Mating Finish | |
| Current | |
| Electric Shock Protection | |
| Flammability Class | |
| Header Orientation | |
| Insulating Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Operating Temperature Max | |
| Operating Temperature Min | |
| Package Type | |
| Pitch | |
| Positions Per Level | |
| Rated Current (20°C, max) | |
| Rated Current (40°C, max) | |
| Rated Impulse Withstand Voltage | |
| Rated Voltage (II/2) | |
| Rated Voltage (III/3) | |
| Short-Time Withstand Current | |
| Solder Pin Length | |
| Standard Package Quantity | |
| Storage Temperature | |
| Storage Temperature (max) | |
| Storage Temperature (min) | |
| Termination Style | |
| Type | |
| Voltage |

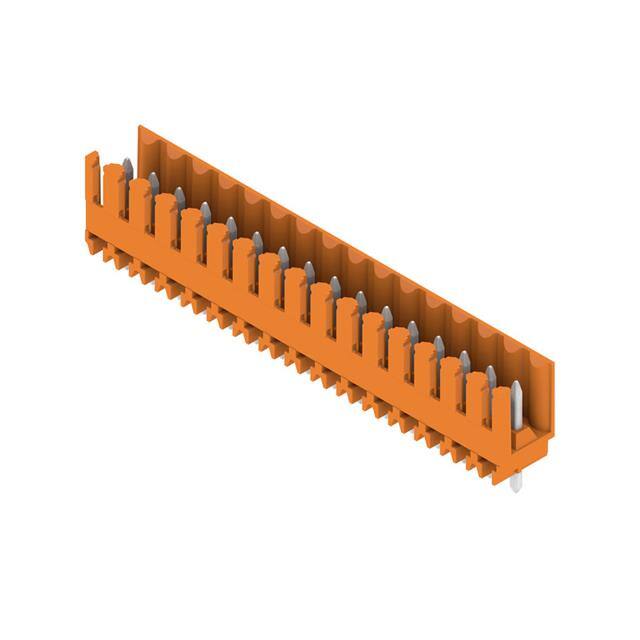

The Weidmüller 1604910000 is a 16-position male header from the SL 3.5/180 series, designed for PCB plug-in connector applications. It features a 3.5mm pitch and a vertical through-hole mounting style with solder termination. The connector is shrouded on two sides and has a tin-plated contact mating finish.
Electrical ratings include a rated current of 10A at 40°C (12A at 20°C) and a rated voltage of 300V. The operating temperature range is -25°C to 100°C. The insulating material is PBT with UL 94 V-0 flammability rating, and the contact base material is CuSn.
The connector is packaged in a box of 50 pieces. It is RoHS3 compliant and REACH unaffected, though these compliance claims are unverified.
The 1604910000 has 16 positions.
The pitch is 3.50mm.
The rated current is 10A at 40°C (max for all pins) and 12A at 20°C (max for all pins).
The rated voltage is 300V. Additionally, rated voltage for overvoltage class III/pollution severity 3 is 160V, and for class II/severity 2 is 320V.
The mounting type is through hole, vertical orientation.
The operating temperature range is -25°C to 100°C.
The flammability class is UL 94 V-0.
