| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Current (per position) | |
| Flammability Class | |
| Header Orientation | |
| Industrial Grade | |
| Insulating Material Group | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| Rated Current (Tu=20°C, all pins) | |
| Rated Current (Tu=40°C, all pins) | |
| Rated Impulse Withstand Voltage (III/3) | |
| Rated Voltage (II/2) | |
| Rated Voltage (III/2) | |
| Rated Voltage (III/3) | |
| Short-Time Withstand Current | |
| Solder Pin Length | |
| Standard Package Qty | |
| Storage Temperature | |
| Termination Style | |
| Type | |
| Voltage |

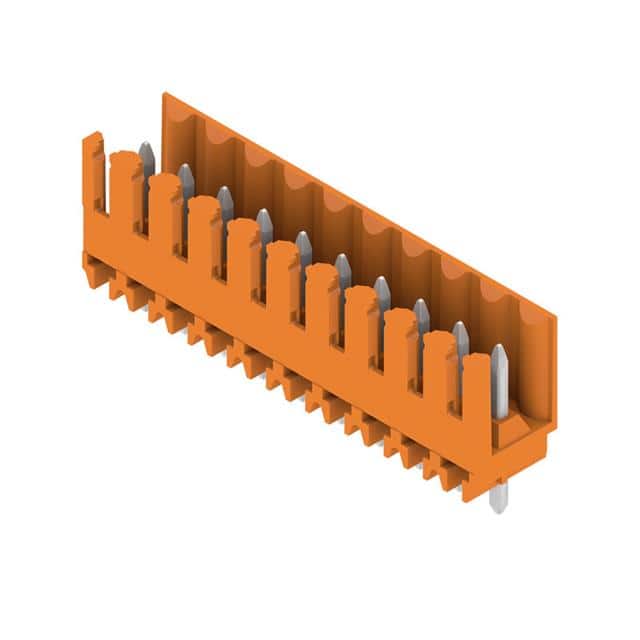

The Weidmüller 1604850000 is a PCB plug-in connector from the SL 3.5/180 series. It is a 10-position, single-row, vertical header with male pins and a shrouded (2 side) design. The connector features a 3.50mm pitch and is terminated via through-hole solder pins with a 3.2mm solder pin length.
Electrical ratings include a current of 10A per position and a voltage rating of 300V. The datasheet also specifies rated currents of 12A at 20°C and 10A at 40°C for all pins, and rated voltages of 160V (III/3 and III/2) and 320V (II/2). The rated impulse withstand voltage is 2.5kV. The connector is constructed with a PBT insulating material rated UL 94 V-0, and tin-plated copper-tin (CuSn) contacts.
The operating temperature range is -25°C to 100°C. The housing is orange (similar to RAL 2000). The standard package quantity is 50 pieces. This connector is designed for soldered connection to a PCB with a 180° outgoing elbow.
The 1604850000 has 10 positions in a single row.
The pitch is 3.50mm (0.138 inches).
The current rating is 10A per position. At 20°C the rated current for all pins is 12A, and at 40°C it is 10A.
The voltage rating is 300V. Rated voltage for overvoltage class/pollution severity III/3 and III/2 is 160V, and for II/2 it is 320V.
The mounting type is through hole with solder termination.
The constant operating temperature range is -25°C to 100°C.
The insulating material is rated UL 94 V-0.
