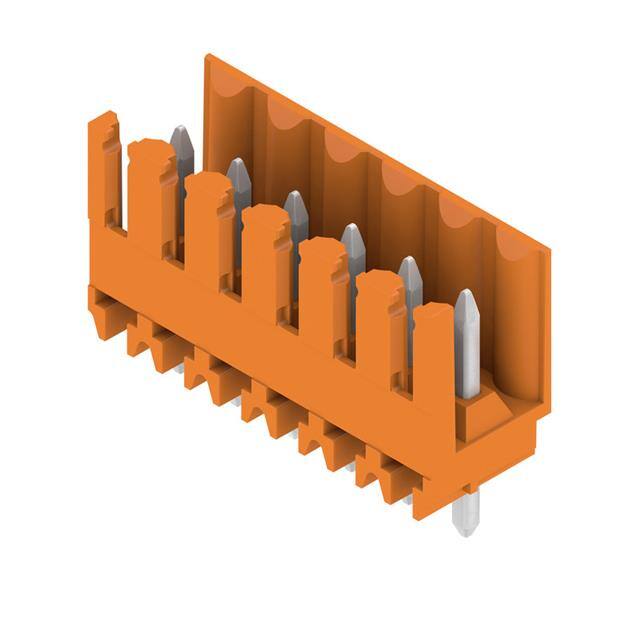

1604810000 Weidmüller 1604810000 is a 6-position, 3.5mm pitch, through hole PCB plug-in connector header with vertical orientation and tin-plated contacts.
Mfr Part #:

1604810000

Available from 1 distributors
Mfr Name: Weidmüller
Weidmüller
Weidmüller 1604810000 is a 6-position, 3.5mm pitch, through hole PCB plug-in connector header with vertical orientation and tin-plated contacts.
✓ Total Stock: 325 pcs

1604810000 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
325 pcs
On Request
325 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1604810000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Base Material
Contact Mating Finish
Current
Current Rating
Header Orientation
Insulation Resistance
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Number of Rows
Operating Temperature
Pitch
Positions Per Level
SVHC Present
Storage Temperature
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

1604810000 Description

Short technical summary and product information.

The Weidmüller 1604810000 (SL 3.5/6/180 3.2SN OR) is a 6-position PCB plug-in connector header designed for through-hole soldering. It features a 3.5mm pitch, vertical orientation, and a shrouded (2 side) header with male pins. The orange PBT insulating material meets UL 94 V-0 flammability class, and the tin-plated CuSn contacts ensure reliable solder connections.



Electrical ratings include a voltage rating of 300V and a current rating of 10A per the attribute data, with detailed derated currents provided in the datasheet: 17A at 20°C (min. pins) and 12A at 20°C (max. pins). The connector is rated for overvoltage class III/pollution severity 3 at 160V with a 2.5kV impulse withstand voltage. It is also UL 1059 and CSA certified for 300V/10A use group D.



The header is designed for through-hole mounting with a vertical orientation and 3.5mm pitch. The orange PBT insulating material meets UL 94 V-0 flammability class. The connector can be coded for keying and provides IP10 electric shock protection. It is packaged in a box of 50 pieces.

1604810000 Quick Information

Product Type: PCB Plug-in Connector
Series: SL 3.5/180
Canonical Name: Weidmüller SL 3.5/6/180 3.2SN OR PCB Plug-in Connector, 6 Pole, 3.5mm Pitch, Through Hole, Vertical
Subcategory: Header, Male Pins, Shrouded (2 Side)

1604810000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 80
REACH Status: REACH Unaffected

1604810000 Features

  • 6 position vertical through hole header.
  • 3.5mm pitch with tin-plated contacts.
  • Rated 300V and 10A continuous current.
  • Orange PBT housing, UL 94 V-0 rated.
  • Can be coded for keying alignment.

1604810000 Applications

  • PCB to wire connection in control systems.
  • Industrial automation and instrumentation panels.
  • Power distribution and signal routing.

1604810000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of this connector?

3.50 mm (0.138 inch).

How many positions does this header have?

6 positions.

What is the voltage rating?

300 V (UL/CSA use group D) and 160 V for overvoltage class III/3.

What is the current rating?

10 A (UL/CSA use group D), with derated values: 17 A at 20°C (min pins) and 12 A at 20°C (max pins).

What mounting type does this connector use?

Through hole soldering with a vertical orientation.

What is the operating temperature range?

-25°C to 100°C (constant operating).

What is the flammability rating of the housing?

UL 94 V-0.
