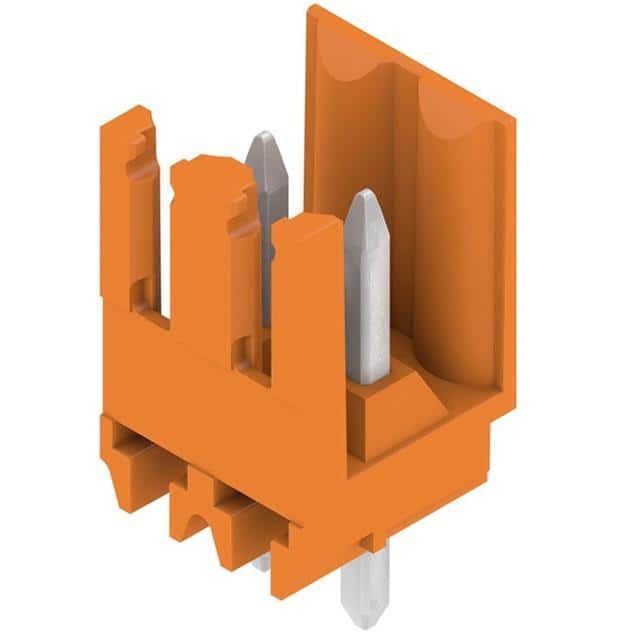

This is a Weidmüller 1604770000 PCB plug-in connector header, part of the SL 3.5/180 series. It is a 2-position, single-row, vertical header with male pins and a shrouded design. The pitch is 3.50 mm (0.138 inches). It is designed for through-hole solder mounting on PCBs.
The connector features tin-plated copper-tin (CuSn) contacts and a PBT insulating body colored orange. It has a flammability rating of UL 94 V-0 and a CTI of >=200. The operating temperature range is -25°C to 100°C, with storage from -25°C to 55°C.
Electrically, it is rated for 10 A at 300 V under UL/CSA conditions, with higher current ratings at lower pin counts and temperatures. The rated impulse withstand voltage is 2.5 kV. Insulation resistance is 1 MΩ. The header can be coded for keying.
Packaged in quantities of 100 pieces, this connector is suitable for various industrial and automation applications requiring reliable PCB connections.
2 positions.
3.50 mm (0.138 inches).
Rated current varies: 17 A for minimum pins at 20°C, 12 A for maximum pins at 20°C; 14.5 A at 40°C (min pins), 10 A at 40°C (max pins). UL/CSA rated 10 A at 300 V.
Rated voltage: 160 V (III/3), 320 V (II/2). UL/CSA rated 300 V.
Through hole solder termination.
-25°C to 100°C.
UL 94 V-0.
