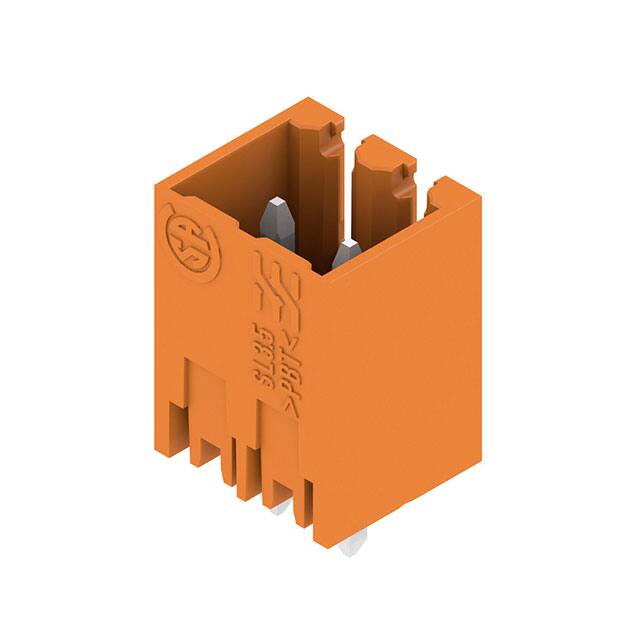

The Weidmüller 1604470000 is a 2-position PCB plug-in connector header from the SL 3.5/180G series. It features a 3.5mm pitch and a vertical (180°) orientation, designed for through hole soldered connection to the PCB. The header is shrouded on 4 sides and accepts male pins with tin-plated contact surfaces.
The insulator is molded from orange PBT (polybutylene terephthalate) material with a flammability rating of UL 94 V-0. The contact base material is CuSn (tin bronze). The part is rated for a voltage of 300V (UL/CSA) and a current of 10A (UL/CSA). The constant operating temperature range is -25°C to 100°C per the datasheet.
This connector is suitable for a variety of industrial and commercial applications requiring a reliable, keyed connection. The 3.5mm pitch allows for compact board layouts. The part is supplied in boxes of 100 pieces.
The pitch is 3.50 mm (0.138 inches).
The UL/CSA rated voltage is 300 V. It is also rated for 320 V in overvoltage class II/2 and 160 V in overvoltage class III/3.
The UL/CSA rated current is 10 A. The rated current varies with pin count and temperature: 17 A (min pins, 20°C), 12 A (max pins, 20°C), 14.5 A (min pins, 40°C), and 10 A (max pins, 40°C).
It uses through hole mounting with solder termination.
The constant operating temperature range is -25°C to 100°C per the datasheet.
The insulator material (PBT) has a flammability class of UL 94 V-0.
The color is orange, similar to RAL 2000.
