| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Type |

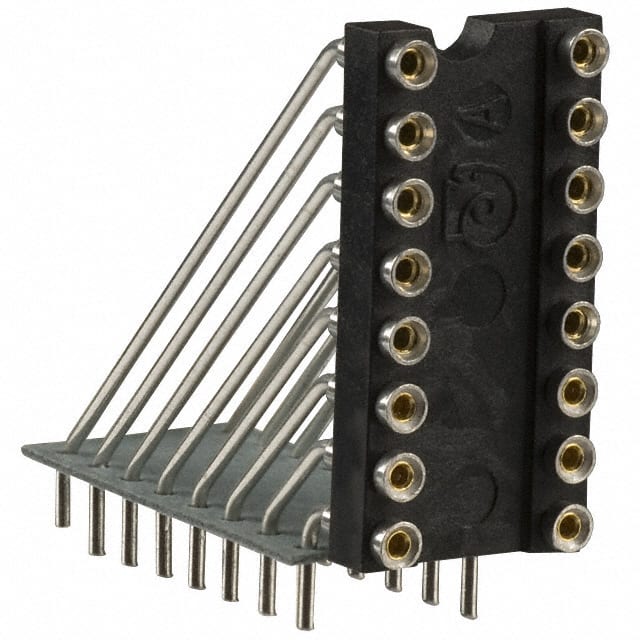

The Aries Electronics 16-810-90C is a 16-position (2x8) DIP IC socket designed for through-hole mounting with a right-angle, vertical orientation. It features a 0.3" (7.62mm) row spacing and a 2.54mm (0.100") pitch, making it suitable for standard 16-pin DIP integrated circuits. The socket uses solder termination for reliable electrical connections.
The contacts are made of beryllium copper with a tin finish of 30.0µin (0.76µm) thickness, providing good conductivity and durability. The housing is constructed from glass-filled polyamide (PA46/Nylon 4/6), offering mechanical strength and thermal stability. The closed-frame design provides full protection for the inserted IC.
This socket is appropriate for applications requiring a right-angle connection to a PCB, such as when space constraints or board orientation require a horizontal insertion path. The vertical mounting type allows for standard DIP IC insertion perpendicular to the board surface. The 2.54mm pitch is compatible with common breadboard and prototyping layouts, as well as production PCB designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.14 | $14.14 |
| 10+ | $12.01 | $12.01 |
| 25+ | $11.26 | $11.26 |
| 50+ | $10.72 | $10.72 |
| 100+ | $10.21 | $10.21 |
| 250+ | $9.57 | $9.57 |
| 500+ | $9.11 | $9.11 |
| 1,000+ | $8.68 | $8.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This socket has 16 positions arranged in a 2x8 grid.
The pitch is 2.54mm (0.100") and the row spacing is 0.3" (7.62mm).
It uses through-hole mounting with a right-angle, vertical orientation and solder termination.
Contacts are beryllium copper with a 30µin tin finish; housing is glass-filled polyamide (PA46/Nylon 4/6).
