Mfr Part #:

16-00241

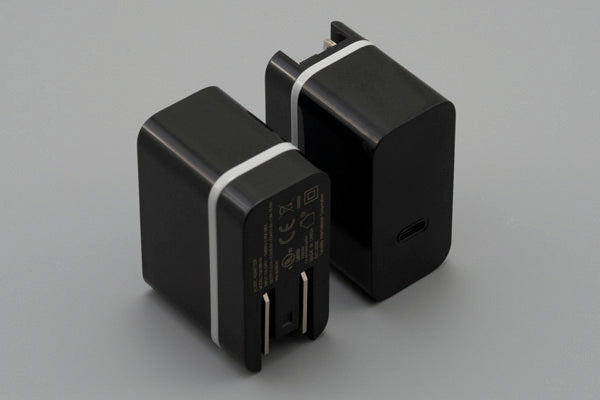

The Tensility International 16-00241 is an 18W AC/DC wall mount adapter with a USB C receptacle. It supports multiple output voltages and currents, including 5V/3A, 9V/2A, and 12V/1.5A.

Stock on Request

16-00241 Description

Short technical summary and product information.

The Tensility International 16-00241 is a versatile AC/DC wall mount adapter designed for ITE (Commercial) applications. It provides up to 18W of continuous power and features USB Power Delivery 3.0.

The adapter offers flexible output options, including 5V at 3A, 9V at 2A, and 12V at 1.5A, catering to a range of device charging needs. It operates with an input voltage range of 100-240 Vac and meets DoE Level VI efficiency standards.

Designed with a NEMA 1-15P input connector and a USB C receptacle, this wall mount adapter is suitable for North American regions. Its compact dimensions (60.0mm x 44.1mm x 29.0mm) make it convenient for various setups. Safety certifications include UL 62368-1, and it is FCC approved.

The operating temperature range is from 0°C to 40°C, and it has a low no-load power consumption of 100mW maximum.

16-00241 Quick Information

Product Type: AC/DC Wall Adapter

Canonical Name: Tensility International 16-00241 AC/DC Wall Mount Adapter

Subcategory: Wall Mount Adapter

16-00241 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

16-00241 Features

18W continuous power output.
Selectable output voltages: 5V, 9V, 12V.
USB Power Delivery 3.0 support.
DoE Level VI efficiency rating.
Compact wall mount form factor.

16-00241 Applications

Charging USB-C enabled devices.
Powering IoT and embedded systems.
Suitable for commercial ITE equipment.
Replacement adapter for PD compatible gear.

16-00241 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range of the 16-00241?

100-240 Vac, 50/60 Hz.

What output voltages and currents are supported?

5V at 3A, 9V at 2A, and 12V at 1.5A via USB-C PD 3.0.

Does the adapter support USB Power Delivery?

Yes, USB Power Delivery 3.0.

What is the operating temperature range?

0°C to 40°C.

What is the efficiency level?

DoE Level VI.

What are the physical dimensions?

60.0mm x 44.1mm x 29.0mm (2.36" x 1.74" x 1.14").

What safety certifications does it have?

UL 62368-1, cULus, FCC.

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	Tensility International
Applications	ITE (Commercial)
Approval Agency	cULus, FCC
Current	3A, 2A, 1.5A
Efficiency	DoE Level VI
Form	Wall Mount (Class II)
Frequency	50 - 60 Hz
Height	29.0mm (1.14")
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
Input Voltage	100 - 240 Vac
Length	60.0mm (2.36")
Mounting Type	Wall Mount
No Load Power Consumption	100mW (Max)
Operating Temperature	0 to 40 °C
Output Connector	USB C Receptacle
Power	18 W
Power (Watts)	18 W
Region Utilized	North America
Standard Number	62368-1
Storage Temperature	-25 to 70 °C
Voltage	5V, 9V, 12V
Weight	65 ± 10 g
Width	44.1mm (1.74")
