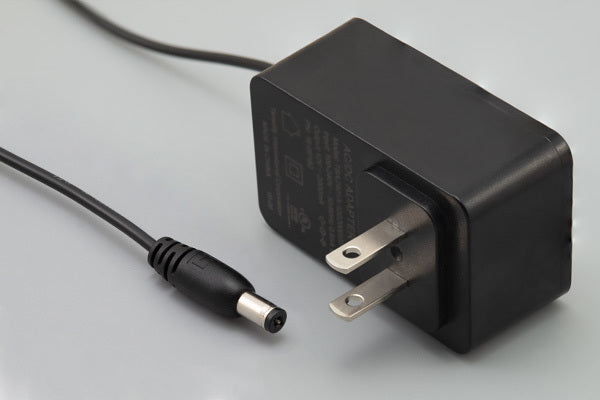

This AC/DC wall mount adapter from Tensility International, part number 16-00233, provides a stable 24V DC output at 1.5A, totaling 36W of continuous power. Designed for ITE (Commercial) applications, it accepts a universal input voltage range of 100-240 Vac at 50/60 Hz.
The adapter features a NEMA 1-15P input connector for North American outlets and a 5.5x2.5mm barrel plug output with a positive center pin, measuring 9.5mm in length. The integrated cable is 1.50 meters long. Its compact dimensions are 80.0mm x 48.0mm x 34.1mm.
Compliance includes UL 62368-1 safety standards and DoE Level VI efficiency. The operating temperature range is from 0°C to 40°C. It also includes features like over-current and short-circuit protection, with a standby power consumption of 0.1W maximum.
The 16-00233 adapter has an output voltage of 24 Vdc and an output current of 1.5 A.
The adapter has a continuous power rating of 36 Watts.
The adapter accepts an input voltage range of 100 - 240 Vac.
The adapter meets DoE Level VI efficiency standards.
The adapter measures 80.0mm in length, 48.0mm in width, and 34.1mm in height.
The operating temperature range is 0°C to 40°C.
The adapter uses a barrel plug with a 2.5mm inner diameter, 5.5mm outer diameter, and 9.5mm length.
