| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage |

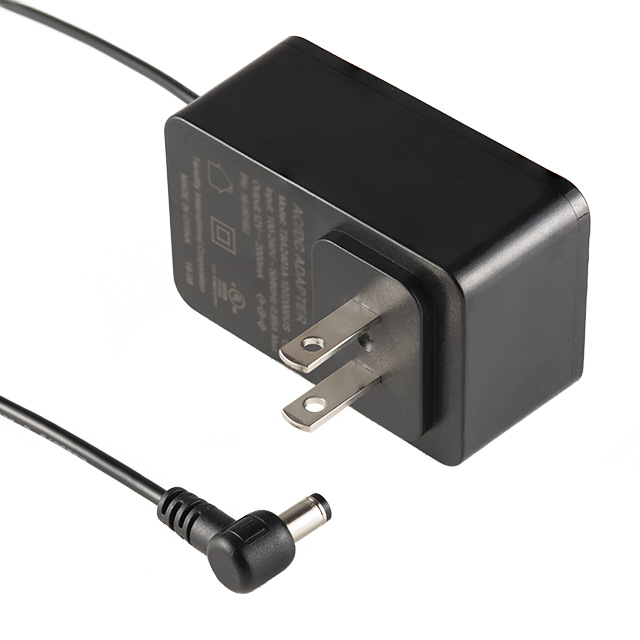

The Tensility International 16-00227 is an AC/DC external wall mount adapter with a 15V output and a maximum current of 2.4A, delivering 36W of power. It operates with an input voltage range of 100 to 240 VAC and meets Efficiency Level VI standards.
This adapter is designed in a wall mount (Class II) form factor with a fixed blade input connector (NEMA 1-15P) and a barrel plug output connector (R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm). Its dimensions are 80.0mm x 48.0mm x 34.1mm, and it includes a 1.50m cord.
Suitable for ITE (Commercial) applications, the 16-00227 operates within a temperature range of 0°C to 40°C. It complies with standard number 62368-1 and is approved by cULus and FCC. The adapter also features a low no-load power consumption of 100mW (Max).
The 16-00227 adapter has an output voltage of 15V and a maximum output current of 2.4A.
The 16-00227 adapter has a power rating of 36W.
The input voltage range for the 16-00227 adapter is 100 to 240 VAC.
The 16-00227 adapter meets Efficiency Level VI.
The dimensions of the 16-00227 adapter are 80.0mm x 48.0mm x 34.1mm.
The 16-00227 adapter uses a Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm output connector.
The operating temperature range for the 16-00227 adapter is 0°C to 40°C.
