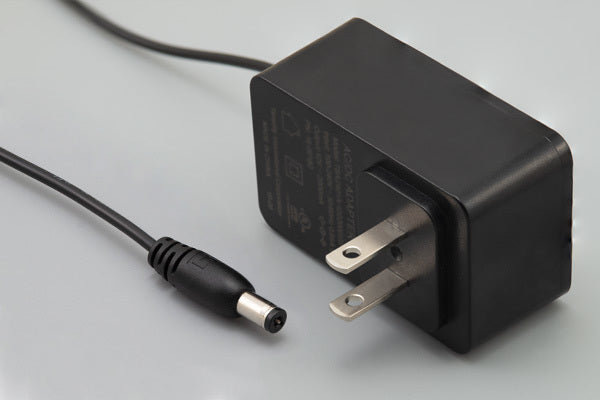

This AC/DC wall mount adapter from Tensility International, part number 16-00224, delivers a continuous 36W of power. It operates with an input voltage range of 100-240 Vac and provides a stable 15Vdc output at 2.4A.
The adapter is designed for ITE (Commercial) applications and features Level VI efficiency, ensuring optimal power consumption. Safety is paramount, with certification to UL 62368-1 standards and approvals from cULus and FCC.
Mechanical specifications include a compact wall mount form factor with dimensions of 80.0mm x 48.0mm x 34.1mm. The integrated NEMA 1-15P input connector and a 5.5x2.1x9.5mm barrel plug output connector with a positive center pin make it suitable for various devices. The attached 1.50m (59") cord offers flexibility in placement.
Operating within a temperature range of 0°C to 40°C, this adapter is built for reliable performance in commercial environments. It is RoHS3 compliant and has an MSL of 1.
The 16-00224 adapter provides an output voltage of 15Vdc at a current rating of 2.4A.
The 16-00224 adapter has a continuous power rating of 36W.
The 16-00224 adapter meets the Level VI efficiency standard.
The operating temperature range for the 16-00224 adapter is 0°C to 40°C.
The 16-00224 adapter is safety certified to UL 62368-1 and has cULus and FCC approvals.
The dimensions of the 16-00224 adapter are 80.0mm in length, 48.0mm in width, and 34.1mm in height.
The 16-00224 adapter features a barrel plug with a 2.1mm inner diameter and a 5.5mm outer diameter, with a length of 9.5mm.
