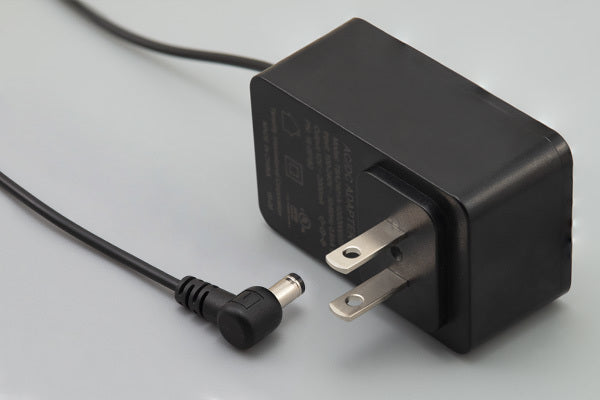

The Tensility International 16-00218 is a versatile AC/DC wall mount power adapter designed for ITE commercial applications. It delivers a stable 12Vdc output with a current rating of 3A, providing a total continuous wattage of 36W.
This adapter meets DoE Level VI efficiency standards, ensuring energy savings and reduced heat generation. It operates with an input voltage range of 100-240 Vac, making it suitable for global use, and features a standard NEMA 1-15P input connector for North America.
The unit is housed in a compact wall-mount form factor (Class II) with dimensions of 80.0mm x 48.0mm x 34.1mm. The output is delivered via a 90° right-angle barrel plug with a 5.5mm outer diameter and 2.1mm inner diameter, a common configuration for DC power.
Safety certifications include UL 62368-1, and it is approved by cULus and FCC. The operating temperature range is 0°C to 40°C.
The 16-00218 adapter has an output voltage of 12 Vdc and an output current of 3 A.
The adapter has a continuous power rating of 36 W.
The adapter meets DoE Level VI efficiency standards.
The operating temperature range is 0°C to 40°C.
It uses a NEMA 1-15P input connector.
The dimensions are 80.0mm in length, 48.0mm in width, and 34.1mm in height.
The output connector is a barrel plug with a 5.5mm outer diameter and a 2.1mm inner diameter.
