Mfr Part #:

16-00217

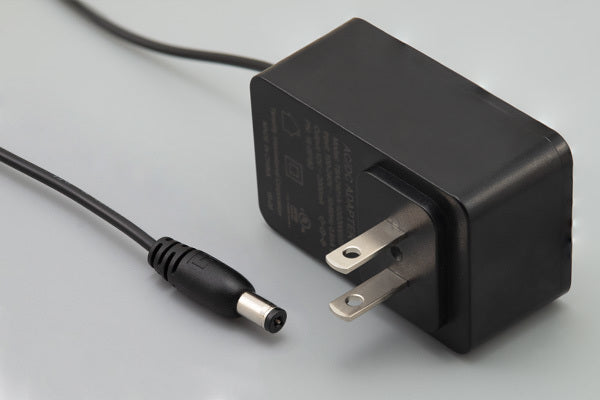

The Tensility International 16-00217 is an AC/DC wall mount power adapter. It provides a 12Vdc output at 3A, delivering up to 36W of continuous power.

Stock on Request

16-00217 Description

Short technical summary and product information.

This AC/DC power adapter from Tensility International, part number 16-00217, is designed for wall mounting and operates with a universal input voltage range of 100-240 Vac.

It delivers a stable 12Vdc output at a current rating of 3A, providing a total continuous power of 36W. The adapter meets DoE Level VI efficiency standards, ensuring energy-conscious operation. It features a NEMA 1-15P input connector for North American outlets and a 5.5x2.5x9.5 mm barrel plug output connector with a positive center pin.

The unit is designed for ITE (Commercial) applications and complies with UL 62368-1 safety standards. Its compact dimensions (80.0mm x 48.0mm x 34.1mm) make it suitable for various installations. The operating temperature range is from 0°C to 40°C.

16-00217 Quick Information

Product Type: AC/DC Power Adapter

Canonical Name: Tensility International 16-00217 AC/DC Power Adapter

Subcategory: AC/DC Wall Mount Adapter

16-00217 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

16-00217 Features

12Vdc output at 3A current
36W continuous power delivery
DoE Level VI efficiency rating
NEMA 1-15P input connector
5.5x2.5x9.5 mm barrel plug output

16-00217 Applications

For powering LED strip lights.
Powers routers and network equipment.
Suitable for CCTV camera systems.
Charges portable electronic devices.
Operates audio equipment and amplifiers.

16-00217 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the output voltage and current of the 16-00217 adapter?

The 16-00217 adapter provides a 12Vdc output at a current rating of 3A.

What is the power rating of the Tensility International 16-00217?

This adapter delivers 36W of continuous power.

What is the input voltage range for the 16-00217 power adapter?

The adapter accepts an input voltage range of 100 to 240 Vac.

What is the efficiency rating of this AC/DC adapter?

The adapter meets DoE Level VI efficiency standards.

What type of input connector does the 16-00217 use?

It features a NEMA 1-15P input connector.

What are the dimensions of the 16-00217 wall mount adapter?

The dimensions are 80.0mm in length, 48.0mm in width, and 34.1mm in height.

What is the operating temperature range for this power supply?

The adapter can operate in temperatures ranging from 0°C to 40°C.

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	Tensility International
Applications	ITE (Commercial)
Approval Agency	cULus, FCC
Cord Length	59" (1.50m)
Current	3 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Frequency	50 - 60 Hz
Height	34.1mm (1.34")
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
Input Voltage	100 - 240 Vac
Length	80.0mm (3.15")
Mounting Type	Wall Mount
No Load Power Consumption	100mW (Max)
Operating Temperature	0°C ~ 40°C
Output Connector	Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Polarization	Positive Center
Power	36 W continuous
Power (Watts)	36 W
Region Utilized	North America
Standard Number	62368-1
Voltage	12 Vdc
Width	48.0mm (1.89")
