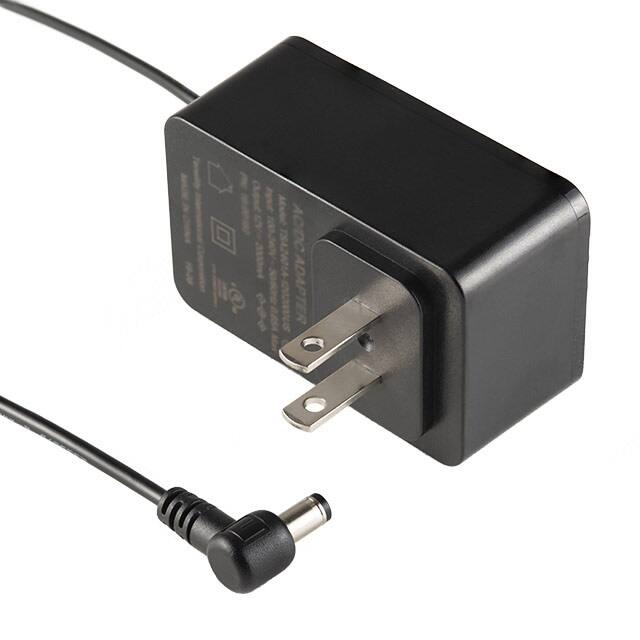

16-00210 The Tensility International 16-00210 is a 24W AC/DC wall mount power adapter with a 24VDC output and 1A current. It accepts 100-240VAC input and meets DoE Level VI efficiency standards.
Mfr Part #:

16-00210

Mfr Name: Tensility International
Tensility International
The Tensility International 16-00210 is a 24W AC/DC wall mount power adapter with a 24VDC output and 1A current. It accepts 100-240VAC input and meets DoE Level VI efficiency standards.
Stock on Request

16-00210 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Cord Length
Current
Efficiency
Form
Frequency
HI-POT
Input Connector
Input Type
Input Voltage
Insulation Resistance
Mounting Type
No Load Power Consumption
Operating Temperature
Output Connector
Output Current
Output Voltage
Polarization
Power (Watts)
Region Utilized
Storage Temperature
Voltage
Wattage
Weight
View Similar Products (0)

16-00210 Description

Short technical summary and product information.

This AC/DC power adapter from Tensility International, part number 16-00210, is designed for wall mounting and provides a continuous 24W output.



It operates with an input voltage range of 100-240VAC at 50/60Hz, drawing a maximum of 0.65A. The output is a stable 24VDC at 1A. The adapter is rated for DoE Level VI efficiency, ensuring energy savings.



Key features include a 5.5x2.1x9.5mm 90° barrel plug output connector with a positive center pin and a NEMA 1-15P input connector. The unit measures 68.5mm x 43.0mm x 32.5mm and has a cord length of 1.50 meters.



Designed for ITE (Commercial) applications, it meets safety standards including UL 62368-1 and carries cULus and FCC approvals. The operating temperature range is 0°C to 45°C.

16-00210 Quick Information

Product Type: AC/DC Power Adapter
Canonical Name: Tensility International 16-00210 AC/DC Power Adapter
Subcategory: Wall Mount Adapter

16-00210 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

16-00210 Features

  • Provides 24W continuous power output.
  • Universal 100-240VAC input voltage.
  • Stable 24VDC output at 1A.
  • Meets DoE Level VI efficiency standards.
  • Features 5.5x2.1x9.5mm 90° barrel plug output.

16-00210 Applications

  • Used for powering 24V DC motors
  • Suitable for LED lighting systems
  • Supports industrial control equipment
  • Provides power to embedded devices
  • Works with portable electronic instruments

16-00210 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage and current of the 16-00210 adapter?

The 16-00210 adapter has an output voltage of 24 Vdc and an output current of 1 A.

What is the input voltage range for the Tensility International 16-00210?

The input voltage range for the 16-00210 adapter is 100 - 240 Vac.

What is the power rating of the 16-00210 adapter?

The 16-00210 adapter has a power rating of 24 W.

What is the efficiency rating of this AC/DC adapter?

This adapter meets DoE Level VI efficiency standards, with a minimum efficiency of 86.2%.

What are the physical dimensions of the 16-00210 adapter?

The dimensions of the 16-00210 adapter are 68.5mm in length, 43.0mm in width, and 32.5mm in height.

What is the operating temperature range for the 16-00210?

The operating temperature range for the 16-00210 adapter is 0°C to 45°C.

What type of output connector does the 16-00210 use?

The 16-00210 uses a 5.5x2.1x9.5 mm 90° barrel plug with a positive center.
