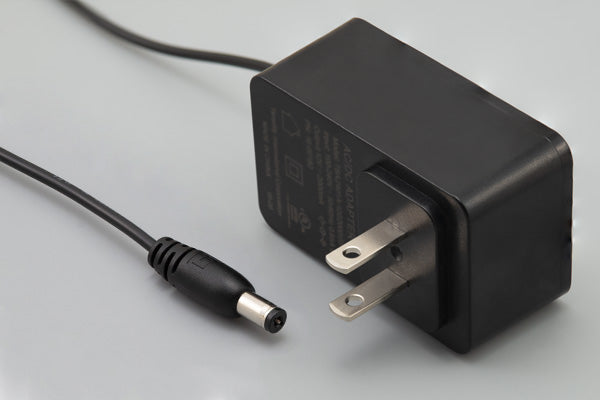

This AC/DC wall mount adapter from Tensility International, part number 16-00182, delivers a stable 12Vdc output with a continuous current rating of 2A, totaling 24W of power.
Designed for ITE commercial applications, it operates with an input voltage range of 100-240 Vac and features a NEMA 1-15P input connector for North American use. The adapter meets DoE Level VI efficiency standards, ensuring energy savings.
The output is delivered via a 2.1mm I.D. x 5.5mm O.D. barrel plug with a positive center pin, and the attached cord has a length of 1.50 meters. The unit is housed in a Class II wall mount form factor.
Key specifications include an operating temperature range of 0°C to 45°C. The adapter is compliant with UL 62368-1 safety standards and approved by cULus and FCC.
The 16-00182 adapter provides a 12Vdc output voltage and a 2A output current.
This adapter has a continuous power rating of 24W.
The adapter accepts an input voltage range of 100 to 240 Vac.
The adapter meets DoE Level VI efficiency standards.
The adapter can operate within a temperature range of 0°C to 45°C.
It features a barrel plug with a 2.1mm inner diameter, 5.5mm outer diameter, and 9.5mm length.
The adapter is a wall mount type, classified as Class II.
