| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

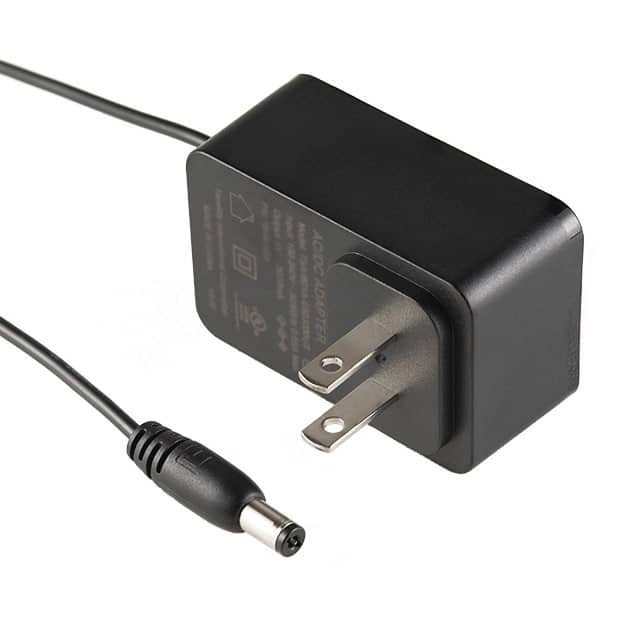

This AC/DC wall mount adapter from Tensility International, part number 16-00143, delivers a stable 12V output with a 1.5A current, totaling 18W of power. Designed for ITE commercial applications, it features a NEMA 1-15P input connector and a standard barrel plug output (2.5mm I.D. x 5.5mm O.D.).
The adapter operates within a temperature range of 0°C to 45°C and complies with Efficiency Level VI standards, ensuring minimal no-load power consumption of 100mW maximum. Its compact dimensions are 63.5mm x 41.5mm x 30.0mm, making it suitable for various installations. The unit is a Class II, wall-mountable device with a fixed blade input and positive center polarization.
It is approved by cULus and FCC for safety and electromagnetic compatibility. The cord length is 1.50 meters (59 inches). This adapter is RoHS3 compliant and meets REACH requirements.
The 16-00143 adapter provides a 12V output at 1.5A.
The power rating of the 16-00143 adapter is 18W.
The 16-00143 adapter meets Efficiency Level VI.
The operating temperature range for the 16-00143 adapter is 0°C to 45°C.
The 16-00143 uses a NEMA 1-15P input connector.
The output connector is a Barrel Plug with a 2.5mm I.D. x 5.5mm O.D. and 9.5mm length.
The 16-00143 adapter is RoHS3 Compliant.
