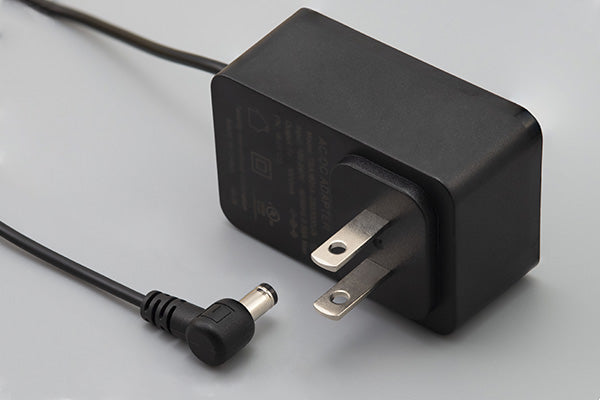

The Tensility International 16-00138 is a versatile AC/DC wall mount power adapter designed for ITE (Commercial) applications. It delivers a stable 9V output current of 2A, providing a continuous 18W of power.
This adapter features a NEMA 1-15P input connector for North American outlets and a 90-degree, 5.5mm x 2.1mm barrel plug with a positive center pin for the output connection. The integrated 1.5-meter cord offers flexibility in placement.
Designed for efficiency, the 16-00138 meets DoE Level VI standards, ensuring reduced energy consumption. It operates within a wide input voltage range of 100-240 Vac and a frequency of 50-60 Hz. The adapter is built with safety in mind, complying with UL 62368-1 standards and featuring over-current and short-circuit protection.
Its compact dimensions (63.5mm x 41.5mm x 30.0mm) and wall-mount form factor make it suitable for various installations. The operating temperature range is 0°C to 45°C, and it includes features like low no-load power consumption.
The adapter accepts 100-240 Vac single phase.
Output is 9V DC at 2A, providing 18W of power.
The adapter operates from 0°C to 45°C.
It is a Wall Mount (Class II) design.
The adapter meets Level VI efficiency requirements.
UL 62368-1, cULus, and FCC approvals.
A right-angle barrel plug with 2.1mm I.D. x 5.5mm O.D. x 9.5mm, positive center.
