| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

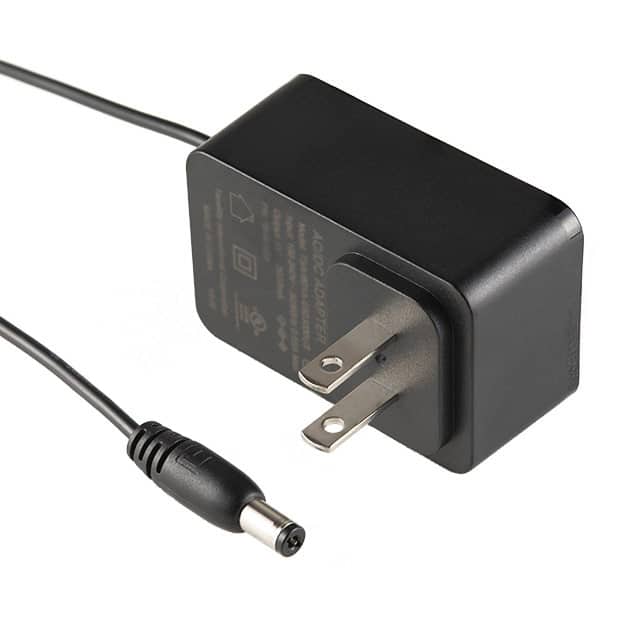

The Tensility International 16-00135 is a versatile AC/DC wall mount adapter with a 9V output voltage and 18W power rating. Designed for ITE (Commercial) applications, it meets Level VI efficiency standards, ensuring optimal energy usage. The adapter features a standard NEMA 1-15P input connector and a fixed blade input type, suitable for North American regions.
With a 2A current output and a positive center barrel plug (2.5mm I.D. x 5.5mm O.D. x 9.5mm), this adapter is suitable for a variety of electronic devices. Its compact dimensions of 63.5mm x 41.5mm x 30.0mm make it a convenient wall-mount solution. The operating temperature range is from 0°C to 45°C, and it consumes a maximum of 100mW at no load. The cord length is 1.50 meters (59 inches).
This adapter is compliant with RoHS3 standards and has an MSL rating of 1. It is designed for Class II applications, providing a reliable power source for your equipment.
9V
0°C to 45°C
NEMA 1-15P
Barrel plug, 2.5mm ID x 5.5mm OD x 9.5mm
Level VI
cULus and FCC
59 inches (1.50m)
