Mfr Part #:

16-00123

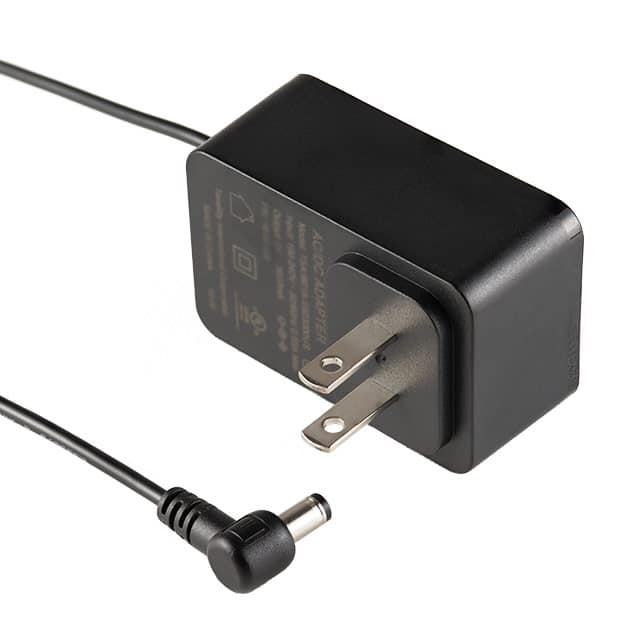

The Tensility International 16-00123 is a 5V, 15W AC/DC wall mount adapter designed for ITE commercial applications. It offers a 3A output current and Level VI efficiency.

Stock on Request

16-00123 Description

Short technical summary and product information.

This AC/DC wall mount adapter from Tensility International, part number 16-00123, provides a stable 5V output with a maximum current of 3A, delivering up to 15W of power.

Designed for commercial ITE applications, it features a fixed blade input connector (NEMA 1-15P) and a barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm). The adapter operates within a voltage input range of 100-240 VAC and meets Level VI efficiency standards.

Its compact dimensions of 63.5mm x 41.5mm x 30.0mm and a weight of 95.25g make it suitable for various installations. The operating temperature range is from 0°C to 45°C. The adapter is RoHS3 compliant and unaffected by REACH regulations.

16-00123 Quick Information

Product Type: AC DC Desktop, Wall Adapter

Canonical Name: AC/DC WALL MOUNT ADAPTER 5V 15W

Subcategory: AC DC Desktop, Wall Adapter

16-00123 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

16-00123 Features

Provides 5V output at 3A current.
Delivers a total of 15W power.
Meets Level VI efficiency standards.
Features NEMA 1-15P input connector.
Compact wall mount (Class II) form factor.

16-00123 Applications

Used in ITE (Commercial) equipment power supplies.
Suitable for 5V/3A wall-mount adapter applications.
Ideal for North American fixed-blade AC input devices.
Compatible with positive-center barrel connector loads.

16-00123 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the output voltage and current for the 16-00123 adapter?

The 16-00123 adapter has an output voltage of 5V and a maximum output current of 3A.

What is the power rating of the Tensility International 16-00123 adapter?

The 16-00123 adapter has a power rating of 15W.

What input voltage range does the 16-00123 adapter support?

The adapter supports an input voltage range of 100 to 240 VAC.

What is the efficiency level of the 16-00123 adapter?

The 16-00123 adapter meets Efficiency Level VI.

What are the dimensions of the 16-00123 AC/DC adapter?

The dimensions of the 16-00123 adapter are 63.5mm x 41.5mm x 30.0mm.

What is the operating temperature range for this adapter?

The adapter operates within a temperature range of 0°C to 45°C.

What type of output connector does the 16-00123 adapter use?

The adapter uses a Barrel Plug R/A connector with 2.5mm I.D. x 5.5mm O.D. x 9.5mm dimensions.

Category	AC DC Desktop, Wall Adapters
Manufacturer Name	Tensility International
Applications	ITE (Commercial)
Approval Agency	cULus, FCC
Cord Length	1.50m (59")
Current	3A
Efficiency	Level VI
Form	Wall Mount (Class II)
Height	30.0mm (1.18")
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
Length	63.5mm (2.50")
No Load Power Consumption	100mW (Max)
Operating Temperature	0°C ~ 45°C
Output Connector	Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Polarization	Positive Center
Power (Watts)	15 W
Region Utilized	North America
Tape & Reel	No
Voltage	5V
Weight	95.25g (0.21 lb)
Width	41.5mm (1.63")
