| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Weight | |
| Width |

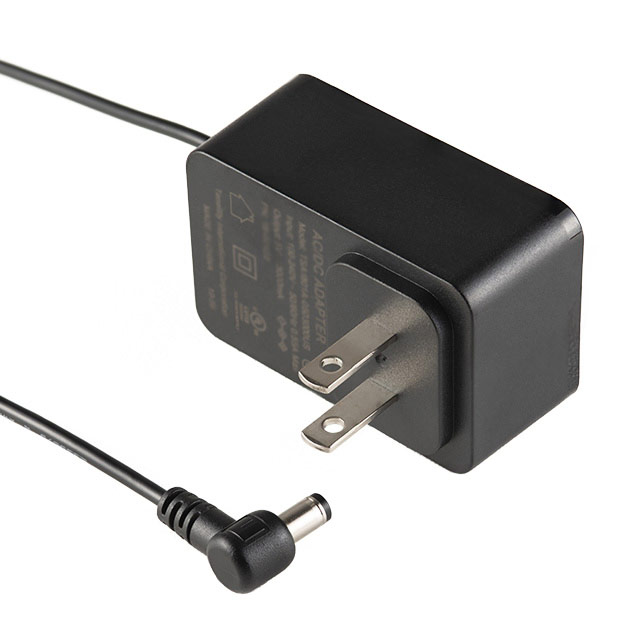

The Tensility International 16-00122 is an AC/DC wall mount adapter designed for commercial ITE applications. It provides a stable 5V output with a maximum current of 3A, delivering a total power of 15W. This adapter meets Level VI efficiency standards, ensuring optimal energy usage.
The unit features a fixed blade input connector (NEMA 1-15P) and a standard barrel plug output connector (2.1mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization. Its compact dimensions of 63.5mm x 41.5mm x 30.0mm make it suitable for various space-constrained environments. The adapter operates within a temperature range of 0°C to 45°C and includes a 1.50m cord.
Designed for reliability, the 16-00122 is approved by cULus and FCC. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. The adapter is suitable for use in North America.
The 16-00122 adapter has an output voltage of 5V and a maximum output current of 3A.
The 16-00122 adapter has a power rating of 15W.
The adapter accepts an input voltage range of 100 to 240 VAC.
The 16-00122 adapter meets Level VI efficiency standards.
The adapter can operate within a temperature range of 0°C to 45°C.
It uses a Barrel Plug R/A connector with 2.1mm I.D. x 5.5mm O.D. x 9.5mm dimensions.
The adapter is stated to be RoHS3 Compliant.
