| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Weight | |
| Width |

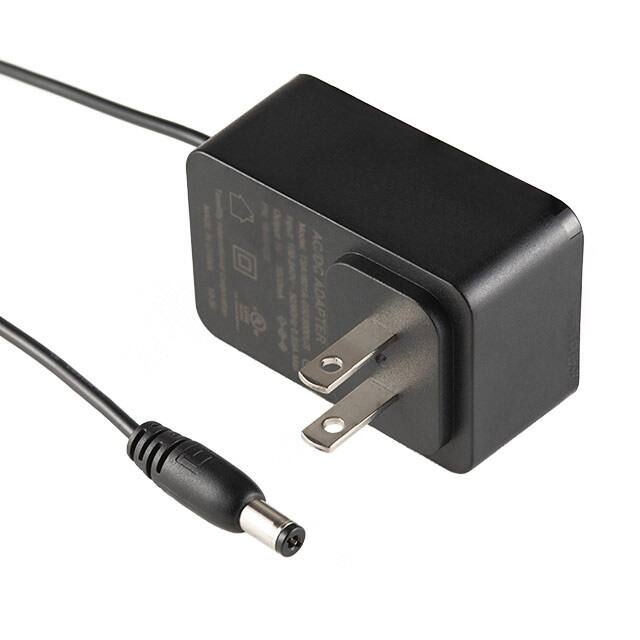

The Tensility International 16-00118 is a versatile AC/DC wall mount power adapter with an 18W output rating. Designed for commercial ITE (Information Technology Equipment) applications, it operates within a wide input voltage range of 100 to 240 VAC, making it suitable for global use.
This adapter features a NEMA 1-15P input connector and a fixed blade input type, ensuring secure connection. The output is delivered via a standard 2.1mm ID x 5.5mm OD barrel plug with a positive center polarization. It boasts Level VI efficiency, meeting stringent energy standards, and has a low no-load power consumption of 100mW maximum.
The operating temperature range is from 0°C to 45°C. The adapter has a cord length of 1.5 meters (59 inches) and its compact dimensions are 63.5mm x 41.5mm x 30.0mm. It is designed in a Class II wall mount form factor.
Compliance includes cULus and FCC certifications. The RoHS status is ROHS3 Compliant, and it is REACH Unaffected. The Moisture Sensitivity Level (MSL) is 1 Unlimited.
The output voltage is 9V.
The maximum output current is 2A.
The power rating is 18W.
The input voltage range is 100 to 240 VAC.
The operating temperature range is 0°C to 45°C.
It uses a NEMA 1-15P input connector.
The dimensions are 63.5mm x 41.5mm x 30.0mm.
