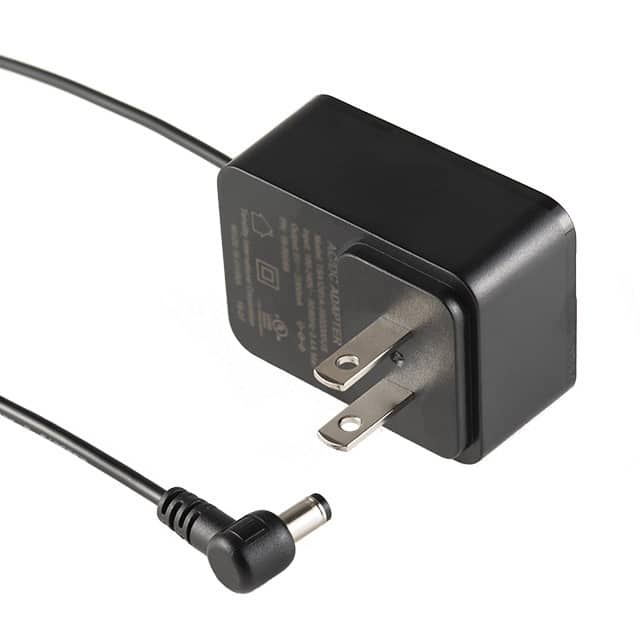

This AC/DC wall mount adapter from Tensility International, part number 16-00082, delivers 12 watts of power with a 12V output. Designed for ITE (Commercial) applications, it features a fixed blade input connector (NEMA 1-15P) suitable for North America and a right-angle barrel plug output connector (2.1mm I.D. x 5.5mm O.D.).
The adapter operates within a temperature range of 0°C to 45°C and complies with Efficiency Level VI standards, ensuring reduced energy consumption with a maximum no-load power consumption of 100mW. Its compact dimensions are 55.5mm in length, 39.5mm in width, and 27.0mm in height. The cord length is 1.50 meters (59 inches), and it utilizes positive center polarization.
Key specifications include a current rating of 1A and approval from cULus and FCC. The form factor is a Class II Wall Mount type. Environmental compliance includes RoHS3 compliance, Moisture Sensitivity Level 1, and REACH unaffected status.
The Tensility International 16-00082 adapter has an output voltage of 12V and a power rating of 12W.
The 16-00082 adapter meets Efficiency Level VI.
The operating temperature range for this adapter is 0°C to 45°C.
The 16-00082 adapter uses a NEMA 1-15P input connector.
The output connector is a Barrel Plug R/A with dimensions 2.1mm I.D. x 5.5mm O.D. x 9.5mm.
