| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

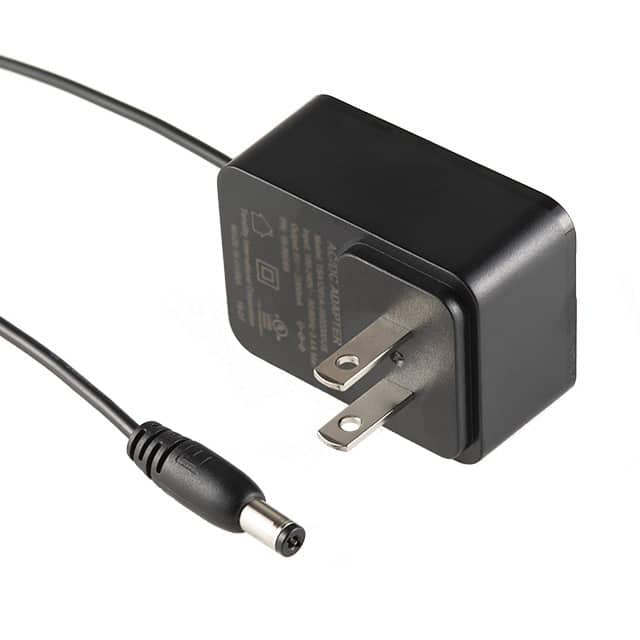

This AC/DC wall mount adapter from Tensility International, part number 16-00079, delivers a stable 12V output at 1A, providing a total of 12W of power. Designed for ITE (Commercial) applications, it meets Level VI efficiency standards, ensuring optimal energy usage.
The adapter features a NEMA 1-15P input connector suitable for North American regions and a standard 2.5mm I.D. x 5.5mm O.D. barrel plug output with positive center polarization. Its compact dimensions are 55.5mm in length, 39.5mm in width, and 27.0mm in height, making it suitable for various installations.
Operating within a temperature range of 0°C to 45°C, the 16-00079 is built for reliable performance. It includes cULus and FCC approval agency certifications. The adapter has a cord length of 59 inches (1.50m) and a low no-load power consumption of 100mW maximum.
100-240 VAC
12 VDC at 1A
0°C to 45°C
Level VI
Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Positive Center
Wall Mount (Class II)
