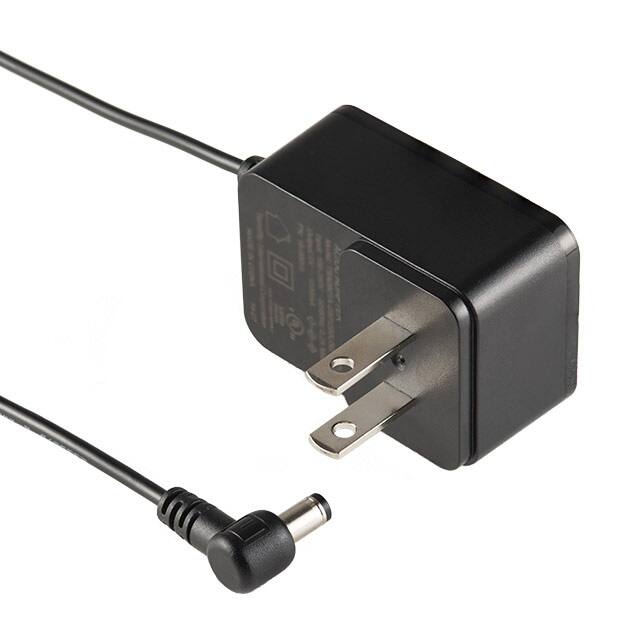

This AC/DC external wall mount adapter from Tensility International, part number 16-00035, provides a stable 12V output with a maximum current of 500mA, delivering up to 6W of power. It is designed for ITE (Commercial) applications and operates with an input voltage range of 100-240 VAC, meeting Level VI efficiency standards. The adapter features a fixed blade input connector (NEMA 1-15P) and a common barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 9.5mm) with positive center polarization.
Designed for convenience, this Class II wall mount adapter has compact dimensions of 51.0mm x 36.5mm x 25.0mm and a cord length of 1.50 meters (59 inches). It operates within a temperature range of 0°C to 45°C and has a low no-load power consumption of 100mW maximum. The unit is approved by cULus and FCC, ensuring compliance with safety and regulatory standards for use in North America. It is supplied in bulk packaging.
The 16-00035 adapter has an output voltage of 12V and a maximum output current of 500mA.
The 16-00035 adapter has a power rating of 6W.
The input voltage range for the 16-00035 adapter is 100-240 VAC.
The 16-00035 adapter meets Level VI efficiency.
The operating temperature range for the 16-00035 adapter is 0°C to 45°C.
The 16-00035 adapter uses a barrel plug with a 2.5mm I.D. x 5.5mm O.D. and a length of 9.5mm.
The 16-00035 adapter is RoHS3 Compliant.
