| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Width |

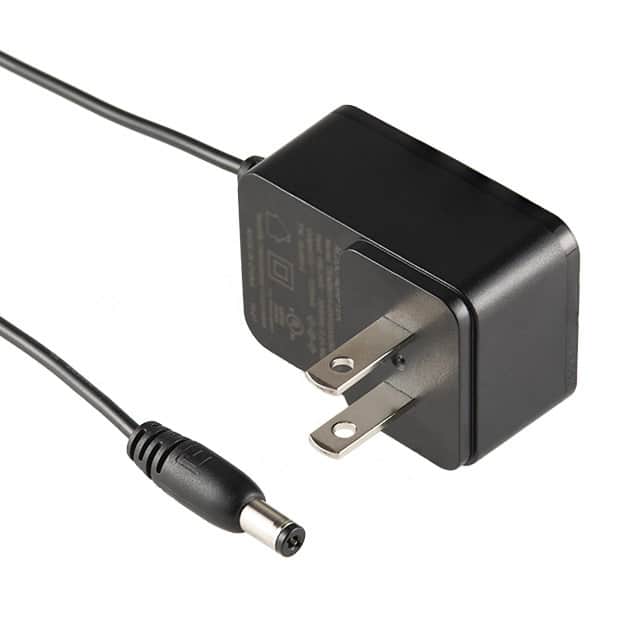

The Tensility International 16-00031 is an AC/DC wall mount adapter delivering a 12V output with a 6W power rating. Designed for ITE (Commercial) applications, this adapter meets Level VI efficiency standards, ensuring optimal energy usage.
Key electrical specifications include a 500mA current output and a fixed blade input connector (NEMA 1-15P) suitable for North American regions. The output is provided via a standard barrel plug with a 2.5mm inner diameter and 5.5mm outer diameter, featuring a positive center polarization. The adapter operates within a temperature range of 0°C to 45°C and consumes a maximum of 100mW at no load.
Mechanically, the unit is a Class II wall mount adapter with dimensions of 51.0mm in length, 36.5mm in width, and 25.0mm in height. It includes a 1.50m (59") cord for convenient placement. The adapter is compliant with cULus and FCC approval agencies.
The 16-00031 adapter provides a 12V output voltage with a power rating of 6W.
This adapter has an efficiency rating of Level VI.
The 16-00031 uses a NEMA 1-15P input connector.
The adapter measures 51.0mm in length, 36.5mm in width, and 25.0mm in height.
The adapter can operate in temperatures ranging from 0°C to 45°C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
