| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Duration | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Voltage | |
| Weight | |
| Width |

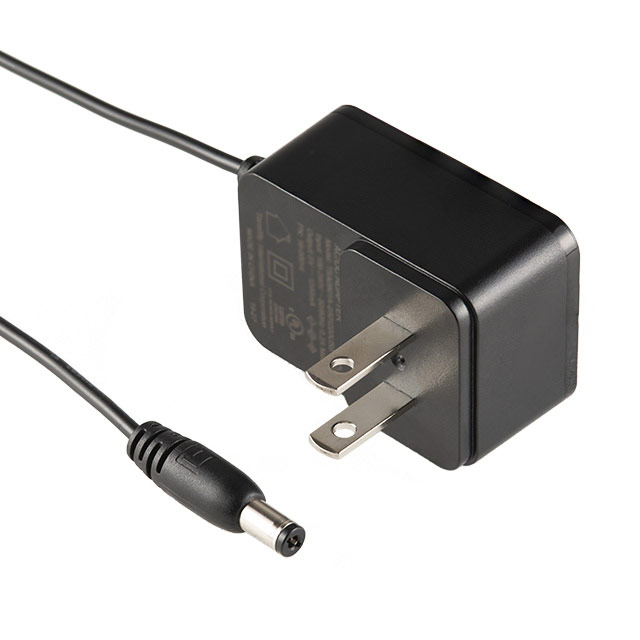

This AC/DC wall mount adapter from Tensility International, part number 16-00030, provides a stable 12V DC output with a maximum current of 500mA, delivering a total power of 6W. It meets Level VI efficiency standards, ensuring energy savings.
The adapter features a Class II wall mount form factor with a NEMA 1-15P input connector, suitable for North American regions. The output is delivered via a standard 2.1mm I.D. x 5.5mm O.D. barrel plug with positive center polarization and a cord length of 59 inches (1.50m).
Designed for ITE (Commercial) applications, this adapter operates within a temperature range of 0°C to 45°C. Its compact dimensions (71.7mm x 45.0mm x 33.0mm) make it suitable for various installations. The adapter is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
The 16-00030 adapter has an output voltage of 12V and a maximum output current of 500mA.
The Tensility International 16-00030 adapter has a power rating of 6W.
The 16-00030 adapter meets Level VI efficiency standards.
The adapter can operate within a temperature range of 0°C to 45°C.
The 16-00030 uses a NEMA 1-15P input connector.
The dimensions of the 16-00030 adapter are 71.7mm x 45.0mm x 33.0mm.
Yes, the 16-00030 adapter is RoHS3 compliant.
