| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Frequency | |
| Input Connector | |
| Input Type | |
| Input Voltage | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Output Current | |
| Output Voltage | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Voltage | |
| Wire Gauge |

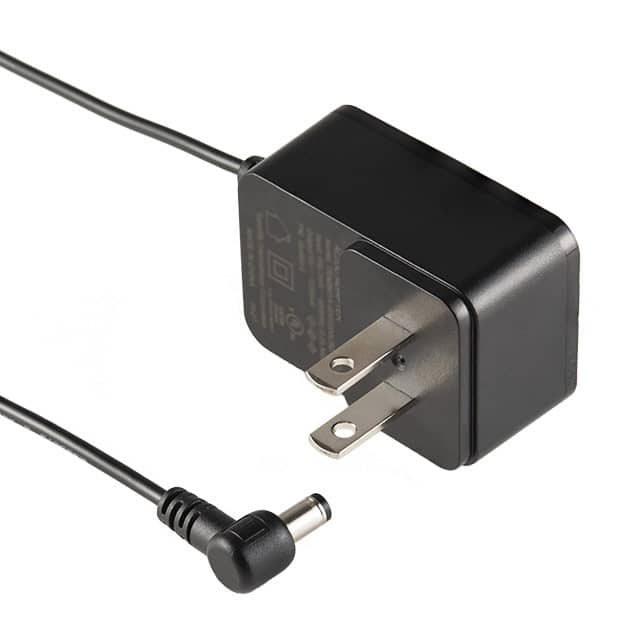

This AC/DC wall mount adapter from Tensility International, part number 16-00019, provides a stable 5Vdc output at 1.0A, delivering a total of 5W of continuous power. Designed for ITE (Commercial) applications, it operates with an input voltage range of 100-240 Vac and meets DoE Level VI efficiency standards.
The adapter features a NEMA 1-15P input connector for North American outlets and a 90° right-angle barrel plug with a 5.5mm outer diameter and 2.5mm inner diameter for the output. The integrated 1.50-meter cord offers flexibility in placement. Its compact dimensions of 51.0mm x 36.5mm x 25.0mm make it suitable for various installations.
Safety certifications include UL 62368-1, and it is approved by cULus and FCC. The operating temperature range is from 0°C to 45°C, making it suitable for standard indoor environments. This RoHS3 compliant adapter is designed for reliable performance in commercial applications.
The 16-00019 adapter has an output voltage of 5 Vdc and an output current of 1.0 A.
The power rating of the 16-00019 adapter is 5 W.
The 16-00019 adapter meets DoE Level VI efficiency standards.
The input voltage range is 100-240 Vac, and the input frequency range is 50-60 Hz.
The 16-00019 uses a NEMA 1-15P input connector.
The dimensions of the 16-00019 adapter are 51.0mm in length, 36.5mm in width, and 25.0mm in height.
The operating temperature range for the 16-00019 adapter is 0°C to 45°C.
