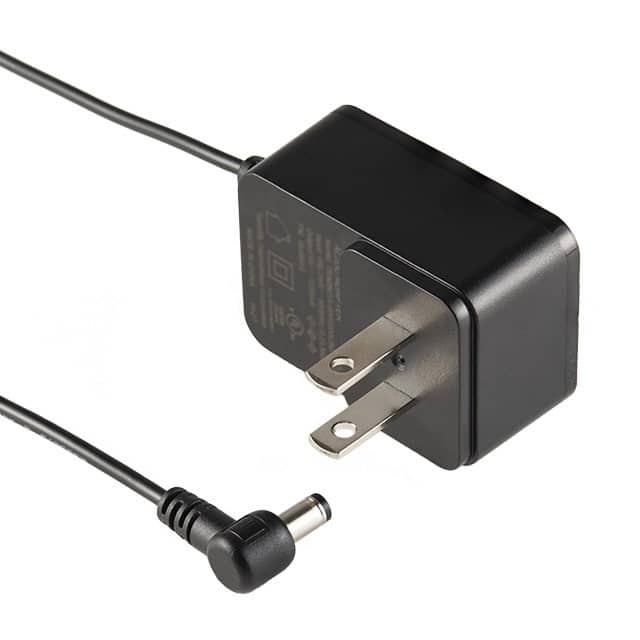

The Tensility International 16-00018 is an AC/DC wall mount adapter designed for ITE (Commercial) applications. It delivers a stable 5Vdc output at a current rating of 1A, providing a total power of 5W.
This adapter features a NEMA 1-15P input connector for North American outlets and a 90° right-angle barrel plug (2.1mm I.D. x 5.5mm O.D.) with a positive center pin for the output connection. The integrated cable measures 1.50 meters (59 inches) in length.
Compliance and safety are addressed with UL 62368-1 certification and FCC approval. The unit operates within a temperature range of 0°C to 45°C and meets DoE Level VI efficiency standards, ensuring energy-conscious performance. Its compact dimensions are 51.0mm x 36.5mm x 25.0mm, making it suitable for various installation environments.
The 16-00018 adapter has an output voltage of 5 Vdc and an output current of 1.0 A.
The power rating of the 16-00018 adapter is 5 W continuous.
The 16-00018 uses a NEMA 1-15P input connector.
The dimensions of the 16-00018 adapter are 51.0mm in length, 36.5mm in width, and 25.0mm in height.
The operating temperature range for the 16-00018 adapter is 0°C to 45°C.
Yes, the 16-00018 adapter meets DoE Level VI efficiency standards.
The 16-00018 adapter is safety certified to UL 62368-1 and has FCC approval.
